Strands SIBERIA Night Guard Double Row 12"

Reinventing innovation. Siberia Night Guard is developed for hard work challenges. You can now fit all your lighting needs into one single lamp. An extremely powerful warning light that also provides an unbeatable high beam. Embrace the simplicity and give yourself a night guard with the highest level of reliability. Multifunctional light providing safety in all weathers and in the darkest of darkness.



Type of Lamp

LED

PCS LED´s

20

Voltage (V DC)

9-35V DC

Theoretical effect (w) 12V

100

Theoretical effect (w) 24V

100

Consumption (w) 12V

46,1

Consumption (w) 24V

46,1

Functions

High beam, dual position light, warning light

Theoretical lumen

8000

Actual lumen

2924

1 LUX @ m

446

Kelvin

6000

IP-class

67/69K

Color housing

Black

Color lens

Clear

Color LED´s

White and Amber

Beam pattern

Combo

Position light

Yes, amber and white

Connection

Cable

Cable length (mm)

2500

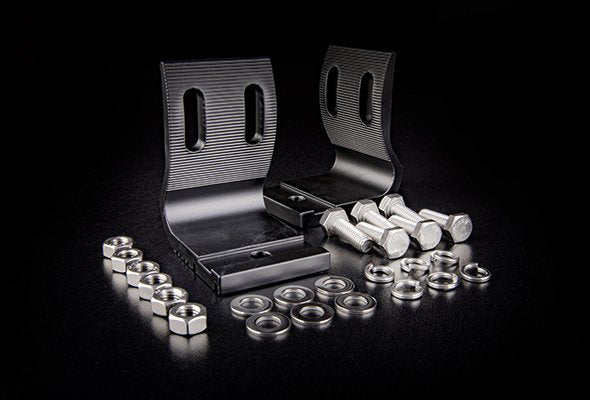

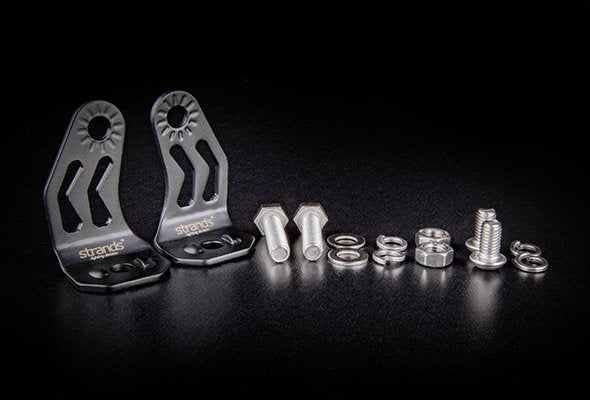

Material bracket

Stainless steel

Material housing/chassi

Aluminium

Material lens

Polycarbonate

Length (mm)

307

Depth (mm)

71,6

Height (mm)

76

Height including bracket (mm)

89

Operating temperature

-30°C - +65°C

E-approved

Yes

According to regulation

ECE R112, R7,R65

Reference number

45

EMC

ECE R10
