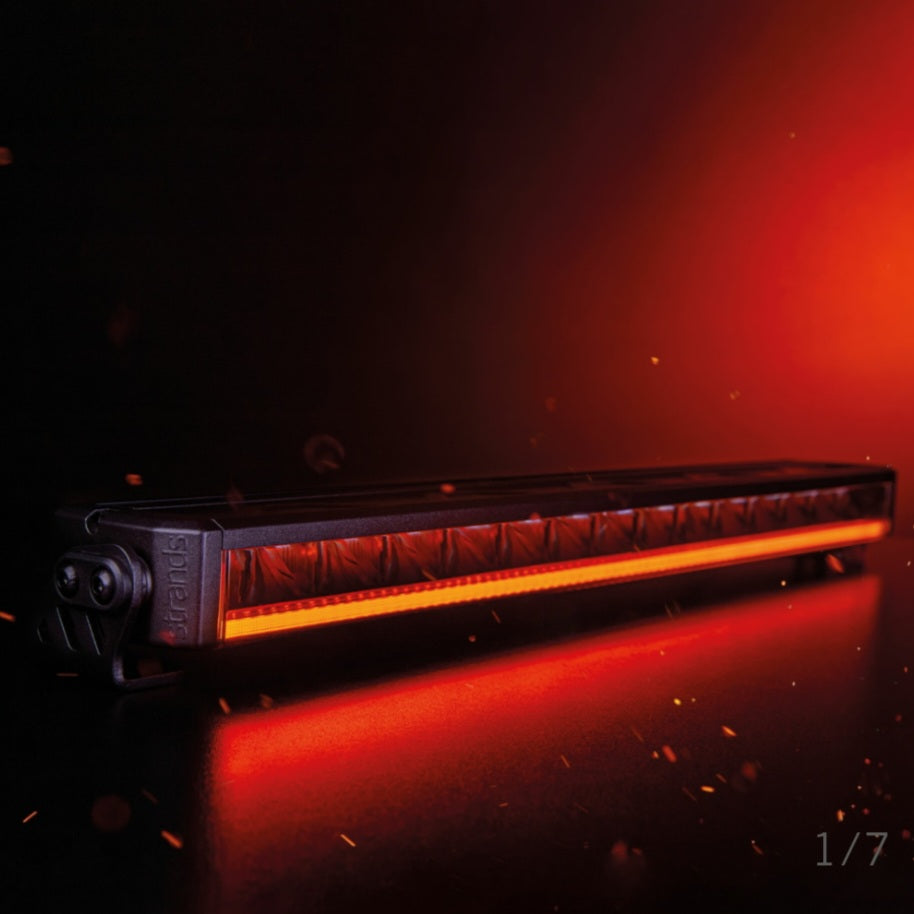

Strands FIREFLY LED BAR 20"

Allow us to introduce the Firefly LED bar 20”, seamlessly integrating with your vehicle while delivering exceptional performance. The result of cutting-edge engineering and our attention to detail.

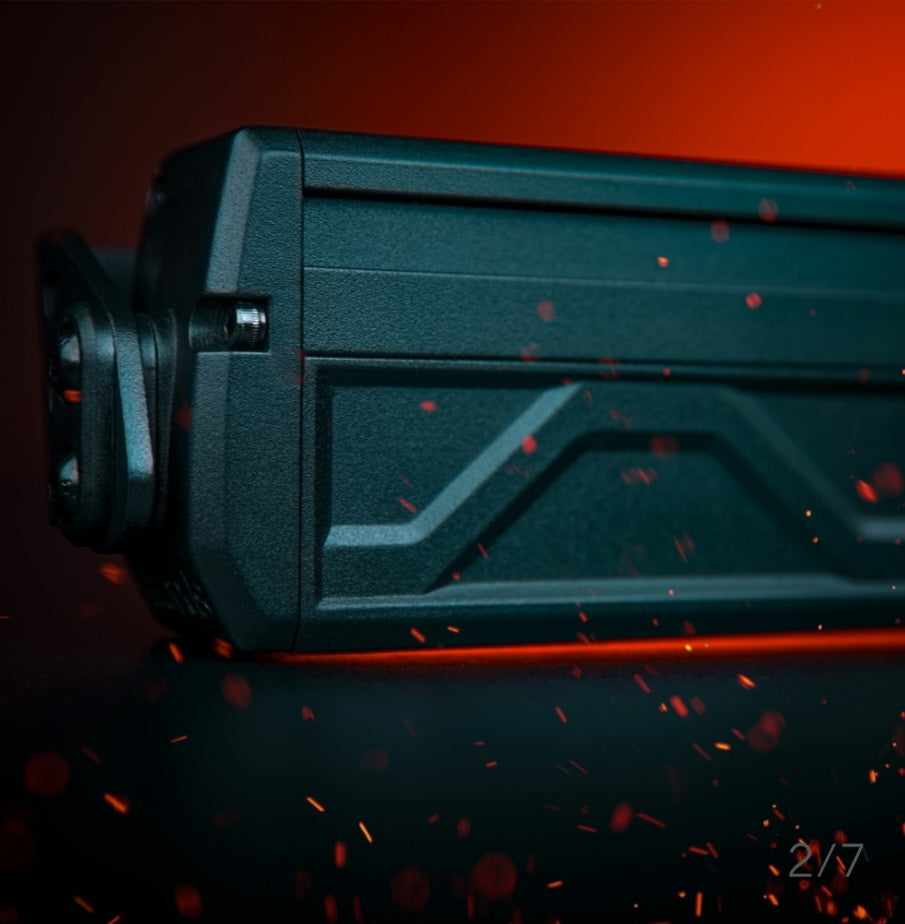

The Firefly LED bar 20” is an absolute game-changer in LED innovation and design. With only 70 mm in depth and a height of 38.5 mm, this LED bar is remarkably slim, setting new standards with a unique design.

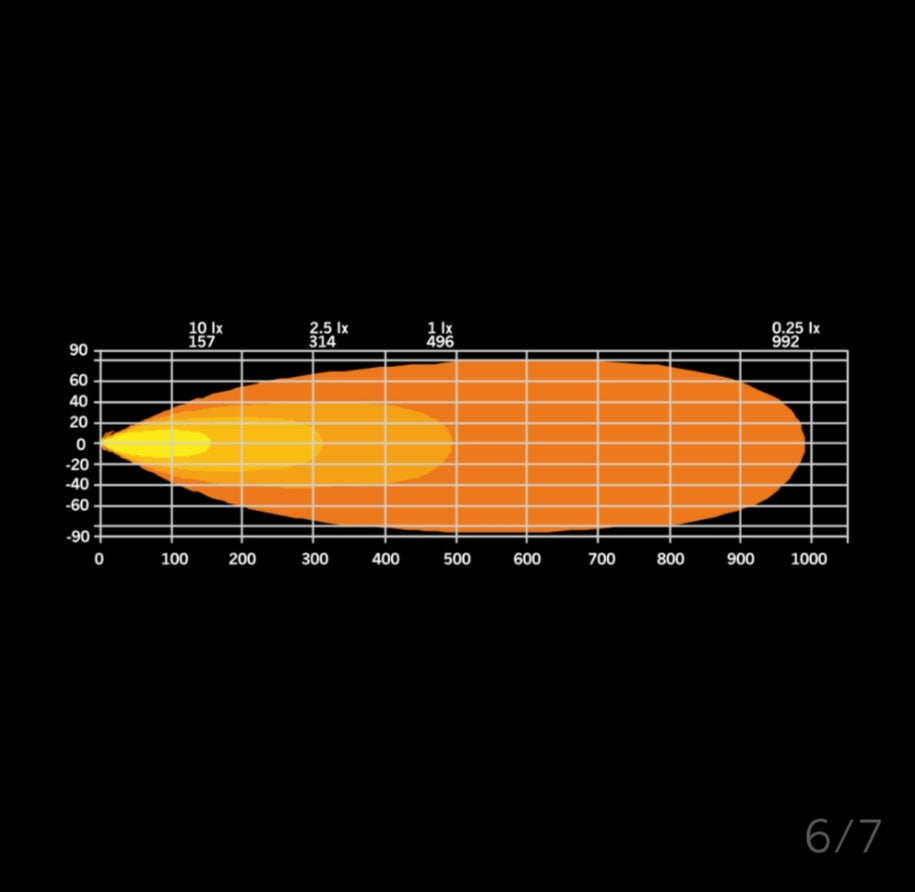

Despite its size, it’s a single-row masterpiece. It delivers maximum performance like no other, providing a sharp and wide beam pattern of 10 670 actual lumens and 1 lux at 496 meters. Ready to guide you forward with clarity and precision.

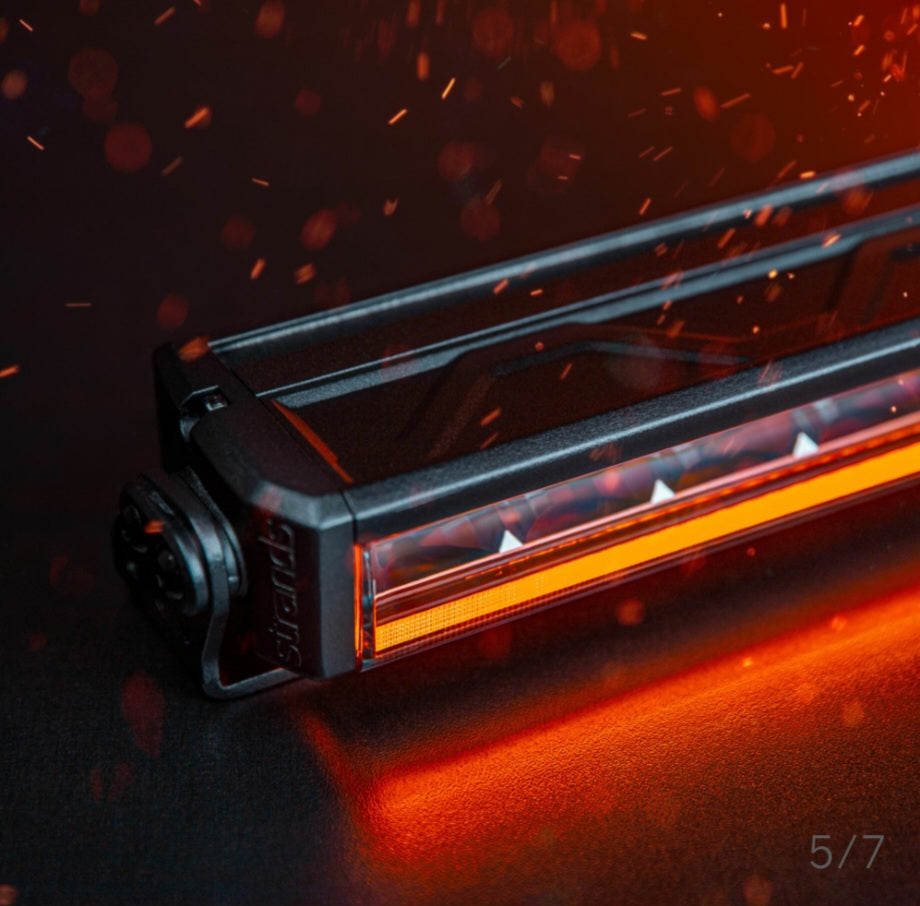

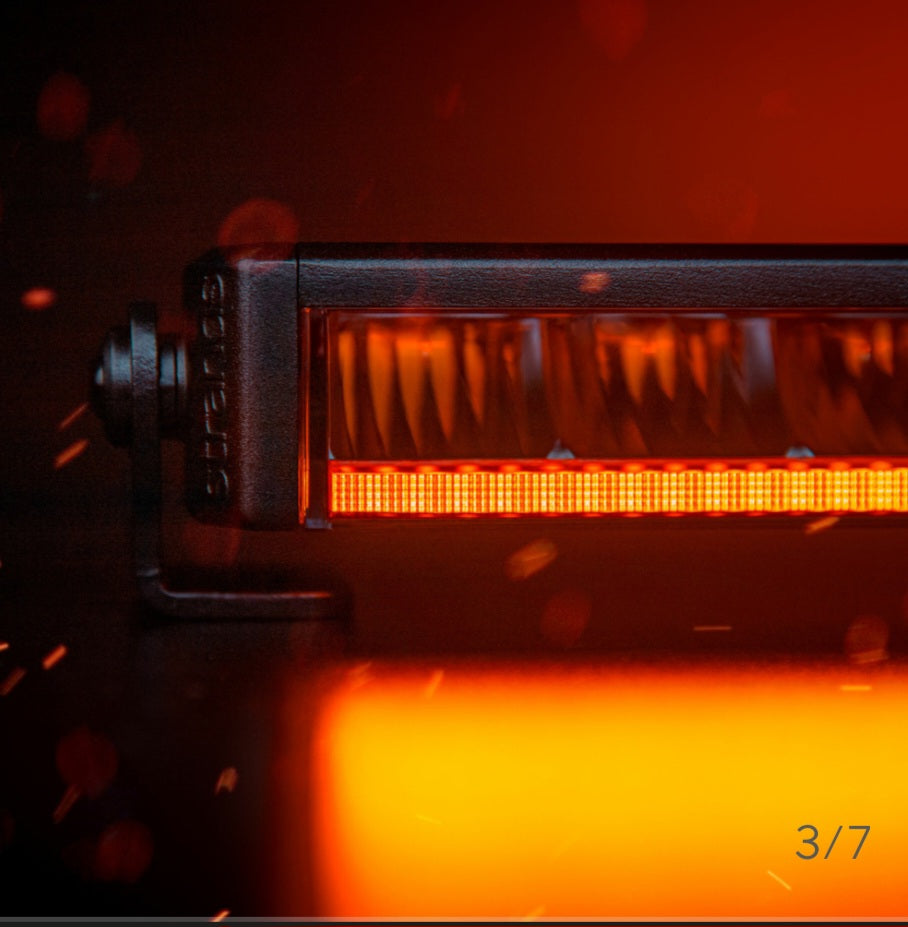

Prepare to leave a lasting impression as you navigate the night with the Firefly LED bar. Its unique dual-position light creates a captivating amber glow beneath the LEDs, guiding your way like a Firefly.

The Firefly LED bar doesn’t just illuminate the road; it becomes an integral part of your vehicle´s DNA. The invisible design makes your vehicle´s exterior uncompromised while enhancing functionality and style.

Each component is important for the result, and we have developed the perfect LED bar based on our experience to protect you from the challenging environment. The lens is made of unbreakable polycarbonate, and the light is E-approved and waterproof, meeting the highest IP standards for ultimate protection.

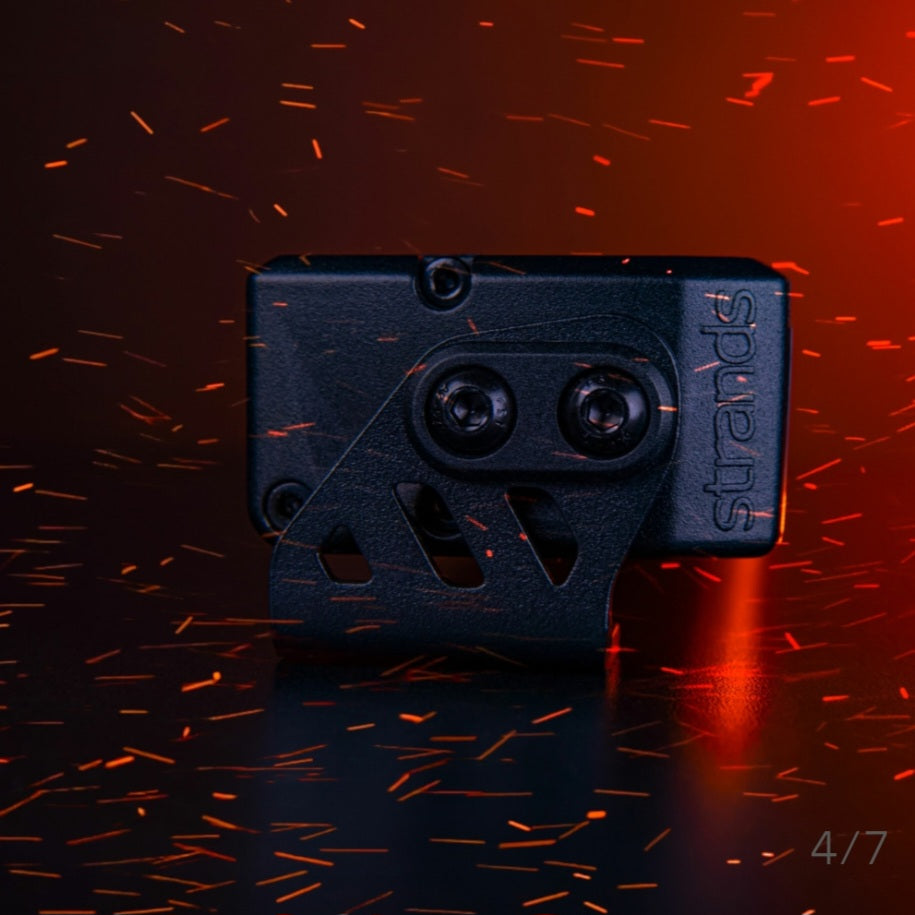

Installation is a breeze with two mounting options. Choose side brackets for a stable, traditional setup, or use adjustable brackets on the side, top, or below the LED bar to tailor the installation to your specific preferences. With included brackets, screws, and a 50 cm cable, securing it is a quick task. The package also included a DT-4 contact for easy connections. Its compact size is ideal for pickups and light commercial vehicles – a must-have guide for your next mission.



Type of Lamp

LED

Voltage (V DC)

10-48V DC

Theoretical effect (w) 12V

155

Theoretical effect (w) 24V

153

Consumption (w) 12V

159

Consumption (w) 24V

157,8

Functions

White position lights,Amber position lights,Driving lights

Actual lumen

10670

1 LUX @ m

496

Kelvin

6000

IP-class

68

Color housing

Black

Color lens

Clear

Beam pattern

Combo

Position light

Yes

Connection

DT4

Cable length (mm)

500

Material bracket

side bracket: 304 stainless steel, sliding bracket: Aluminium

Material housing/chassi

Aluminium

Material lens

PC

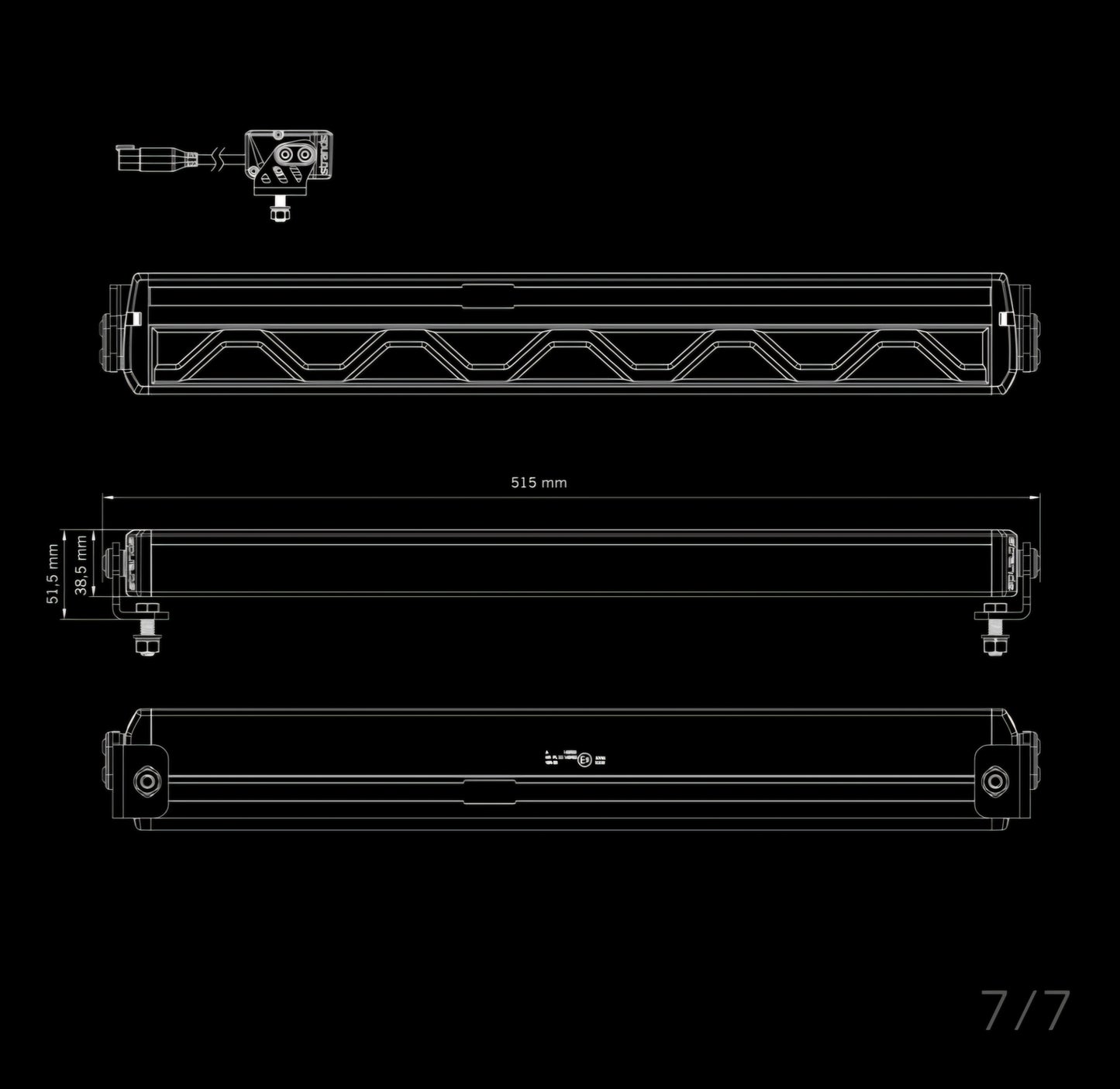

Length (mm)

515

Depth (mm)

70

Height (mm)

38,5

Height including bracket (mm)

56

Operating temperature

-40 - +65°C

E-approved

Yes

According to regulation

ECE R148, R149

Reference number

50

EMC

ECE R10
