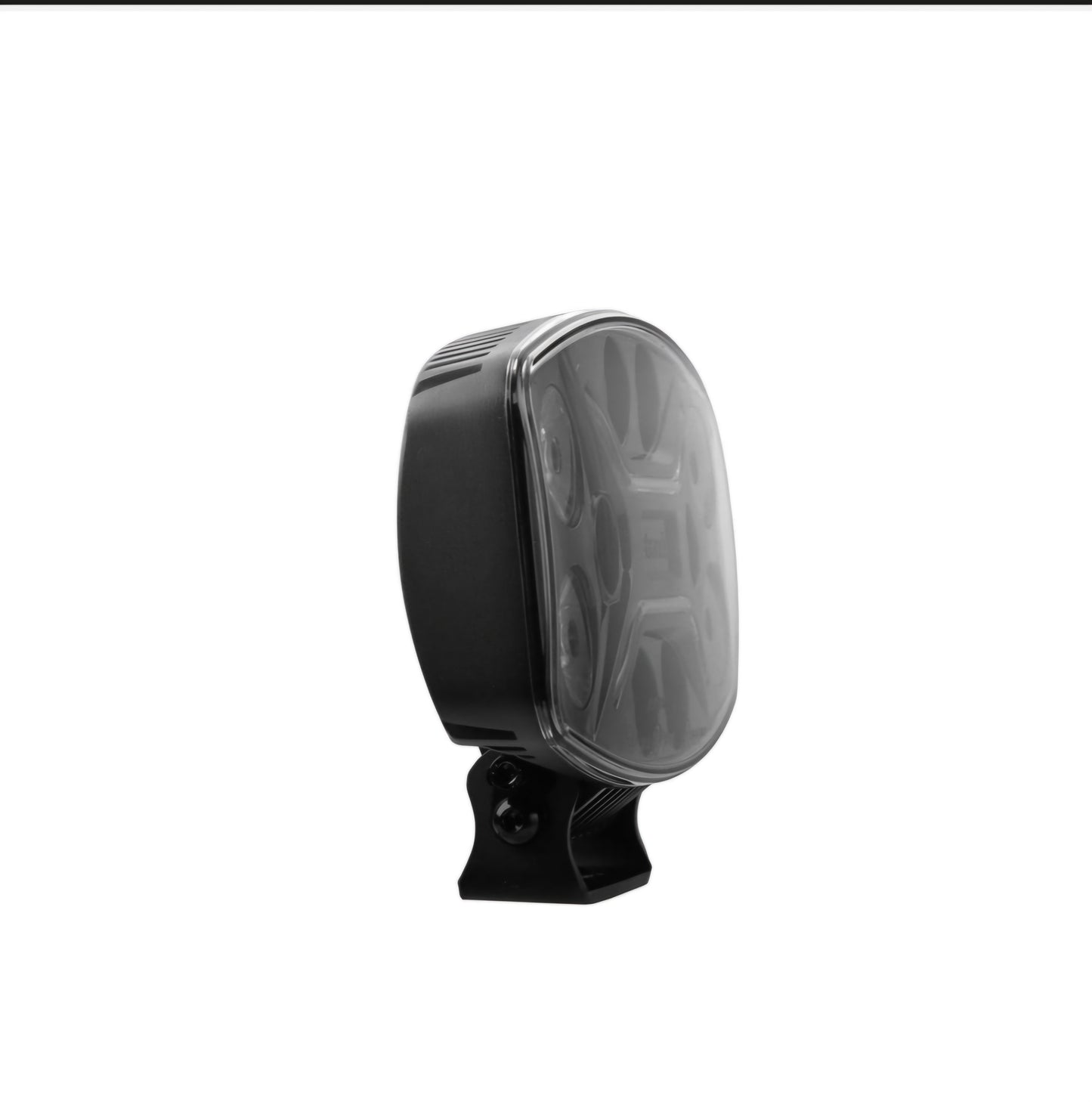

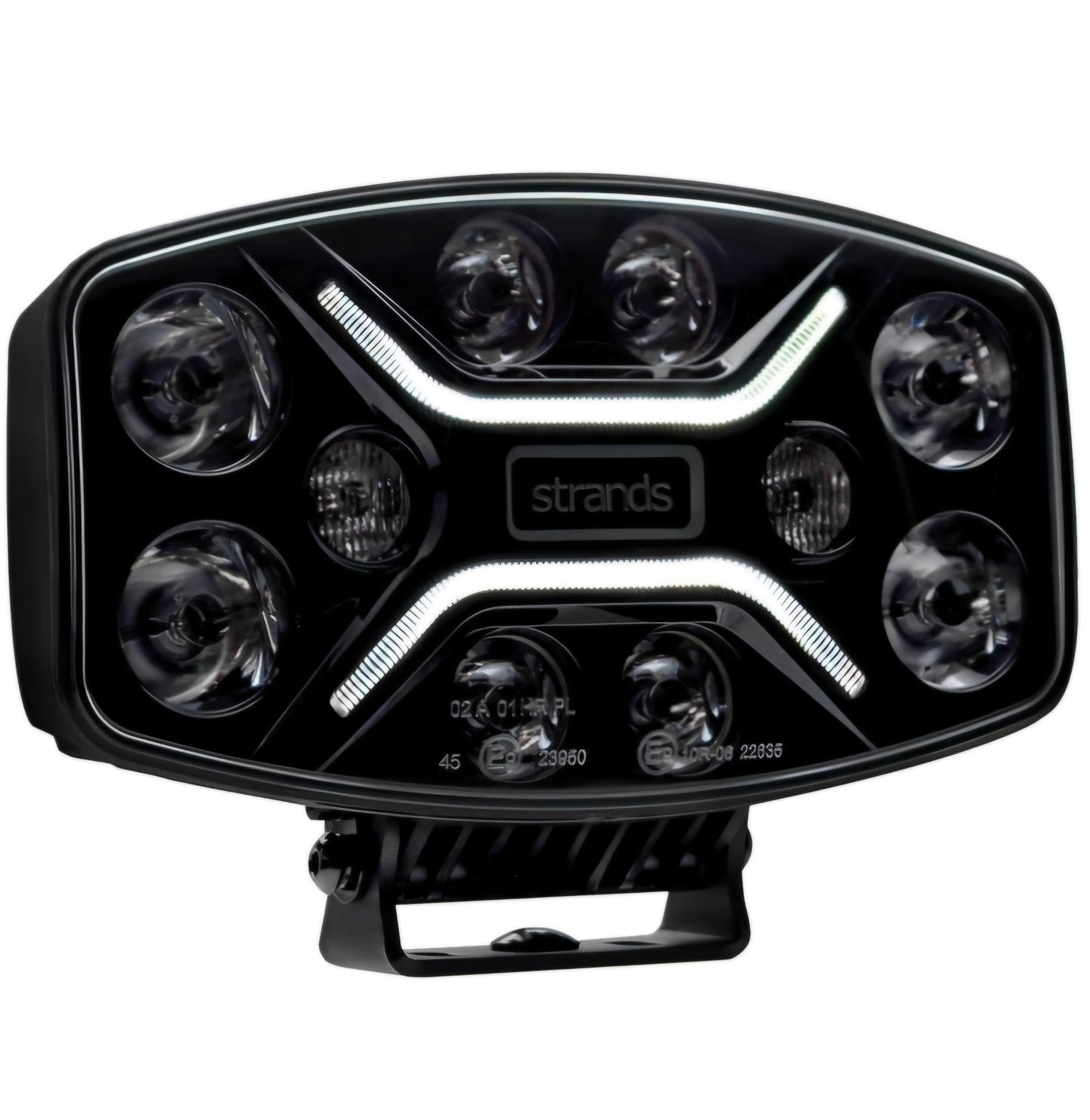

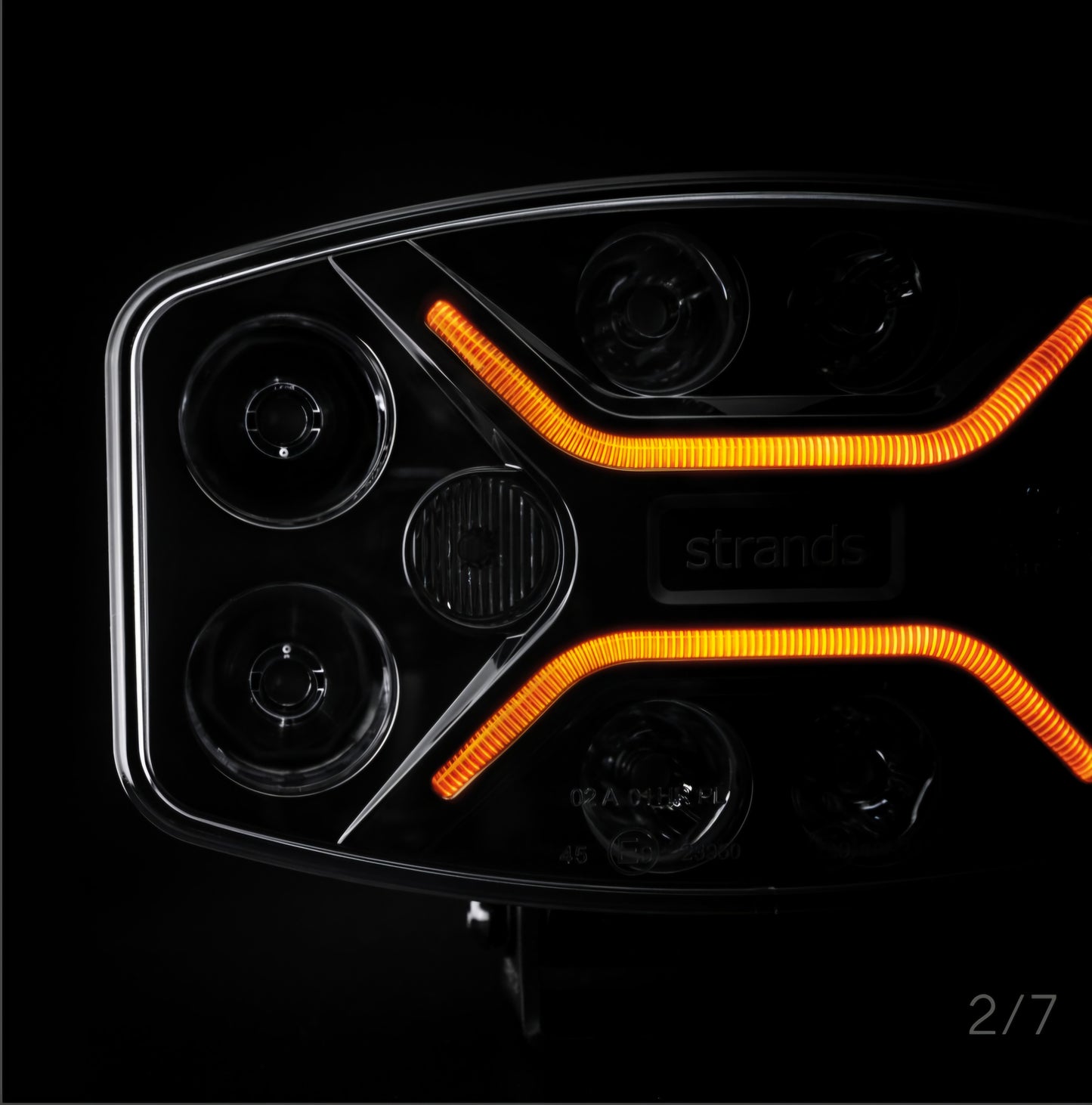

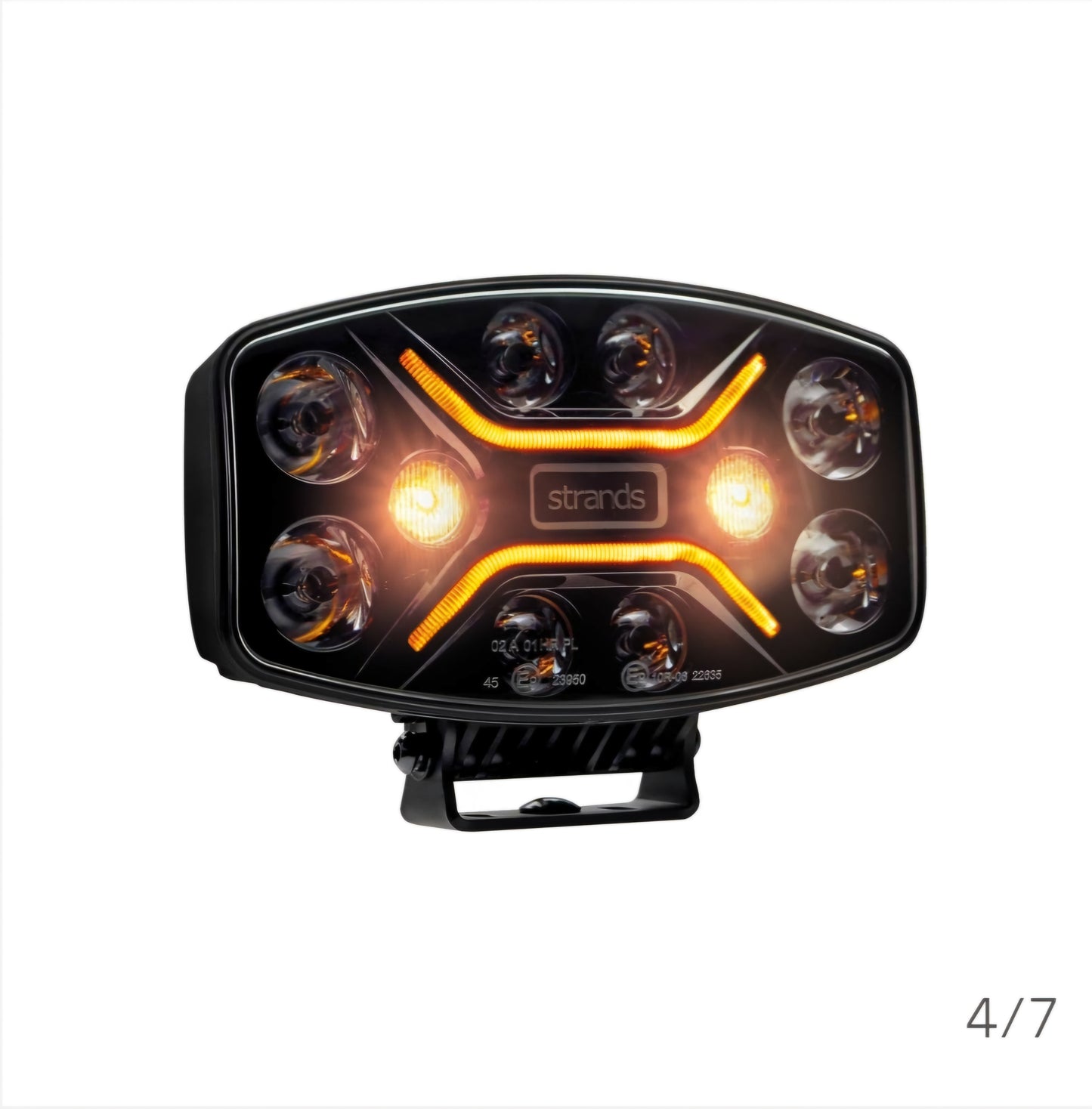

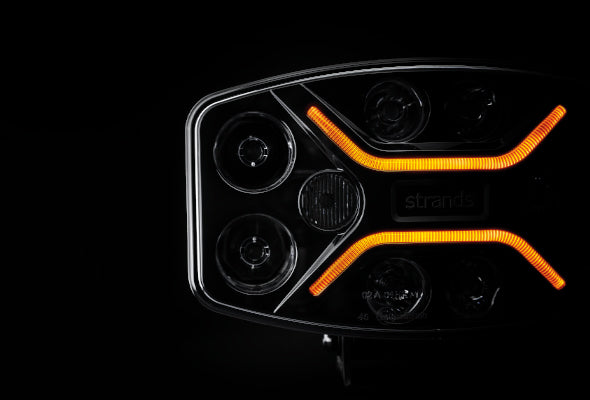

Strands Dark Knight Insane Driving Light LED

Get ready to go Insane. To go from 0 to 100. Dark Knight Insane is here, the newest member of the Dark Knight series. With all your lighting needs into one single lamp: A driving light with duo position light and warning light. Created with passion and loaded with all the features you want. Dark Knight Insane is a confident, futuristic Dark Knight charged with power and brightness in full intensity. Ready for a powerful driving experience beyond the ordinary.

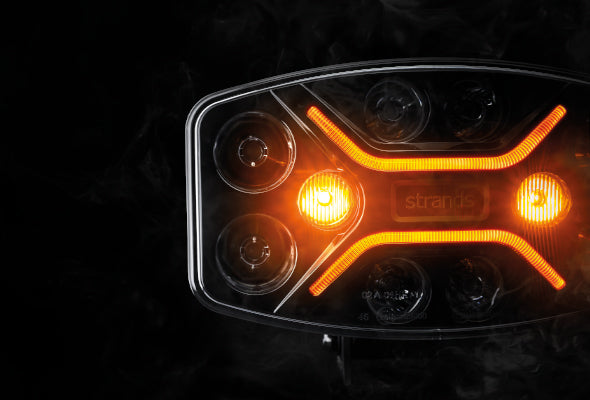

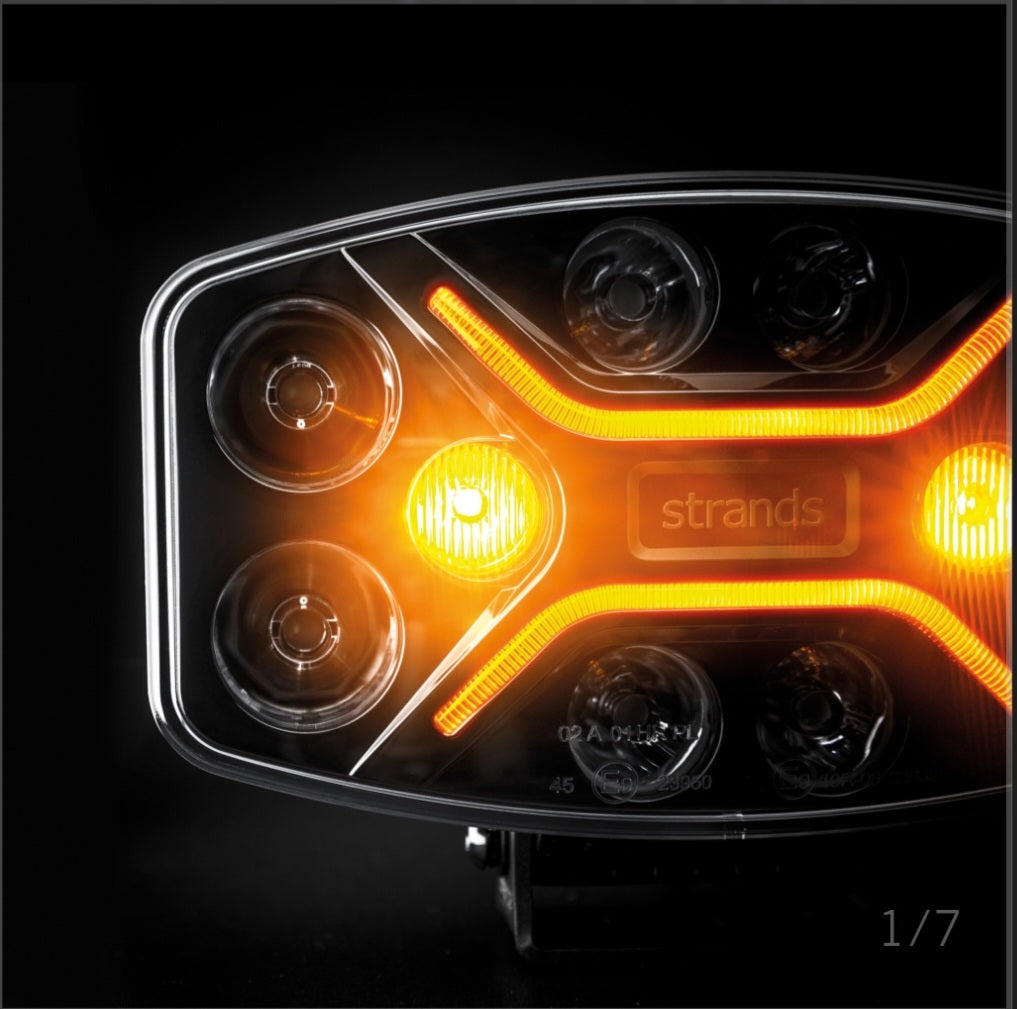

An oval driving light with warning light and position light with duo function, choose between amber and white light.Insane creates your chance to live out your passion and become an unstoppable Dark Knight. With a beam pattern created for the hard-working driver, in need of a perfect balance between length and width. The total efficiency collects and directs the light, exactly where you need it.Insane radiates self-confidence both day and night. Intended to be seen from all angles on the road and as to drive in daylight even during the dark hours of the night. Meet the fearless Knight’s eyes from the unique position light. See and enjoy the soft starting effect, where the light slowly increases in intensity before it finally reaches its full capacity.

With dark details and slim design, it is easy to mount many in a row and quickly become one with your vehicle. Combined with advantage together with the other members of the Dark Knight series to create a harmonious unit.



Type of Lamp

LED

PCS LED´s

High beam: 8pcs (4pcs 10W+4pcs 20W) Position Light: 4pcs 0,5W Warning Light: 2pcs 3W

Voltage (V DC)

9-36V DC

Theoretical effect (w) 12V

120

Theoretical effect (w) 24V

160

Consumption (w) 12V

112

Consumption (w) 24V

98

Patterns

5

Functions

Driving light, position light, warning light

Theoretical lumen

12000

Actual lumen

10500

1 LUX @ m

450

Kelvin

6000

IP-class

68/69K

Color housing

Black

Color lens

Clear

Color LED´s

White/Amber

Beam pattern

Combo

Position light

Yes

Connection

Cable

Cable length (mm)

2500

Material bracket

Stainless steel

Material housing/chassi

Aluminium

Material lens

Polycarbonate

Length (mm)

247

Depth (mm)

70,7

Height (mm)

141

Height including bracket (mm)

170,5

Operating temperature

-40 - +60°C

E-approved

Yes

According to regulation

ECE R112, R7, R65

Reference number

45

EMC

ECE R10



Black cable

- (Negative)

Green cable

Warning light

Grey cable

White Position light
