MDVR System with Forward and 2 Side Cameras. 1TB Hardrive. 7 Inch Monitor. Parksafe

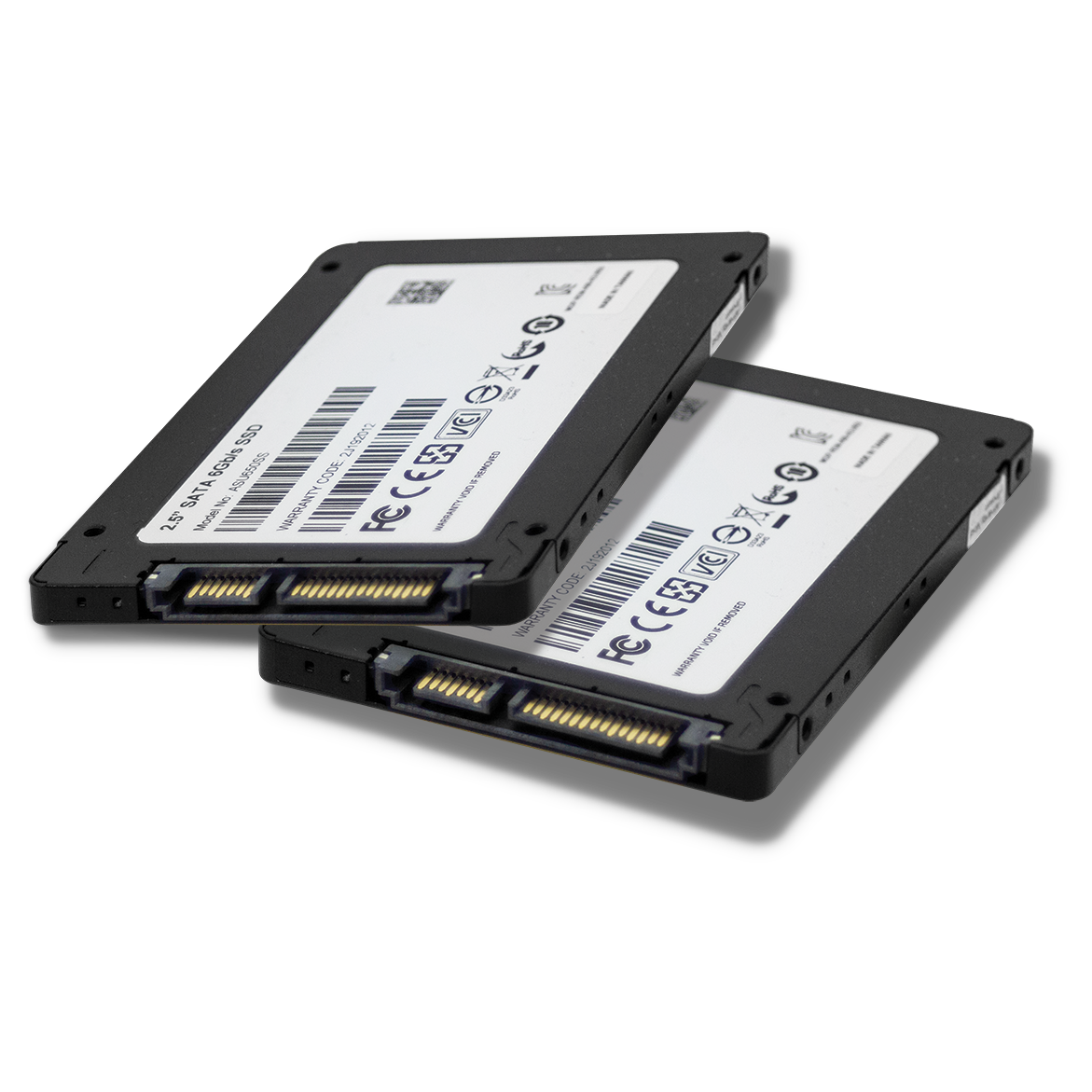

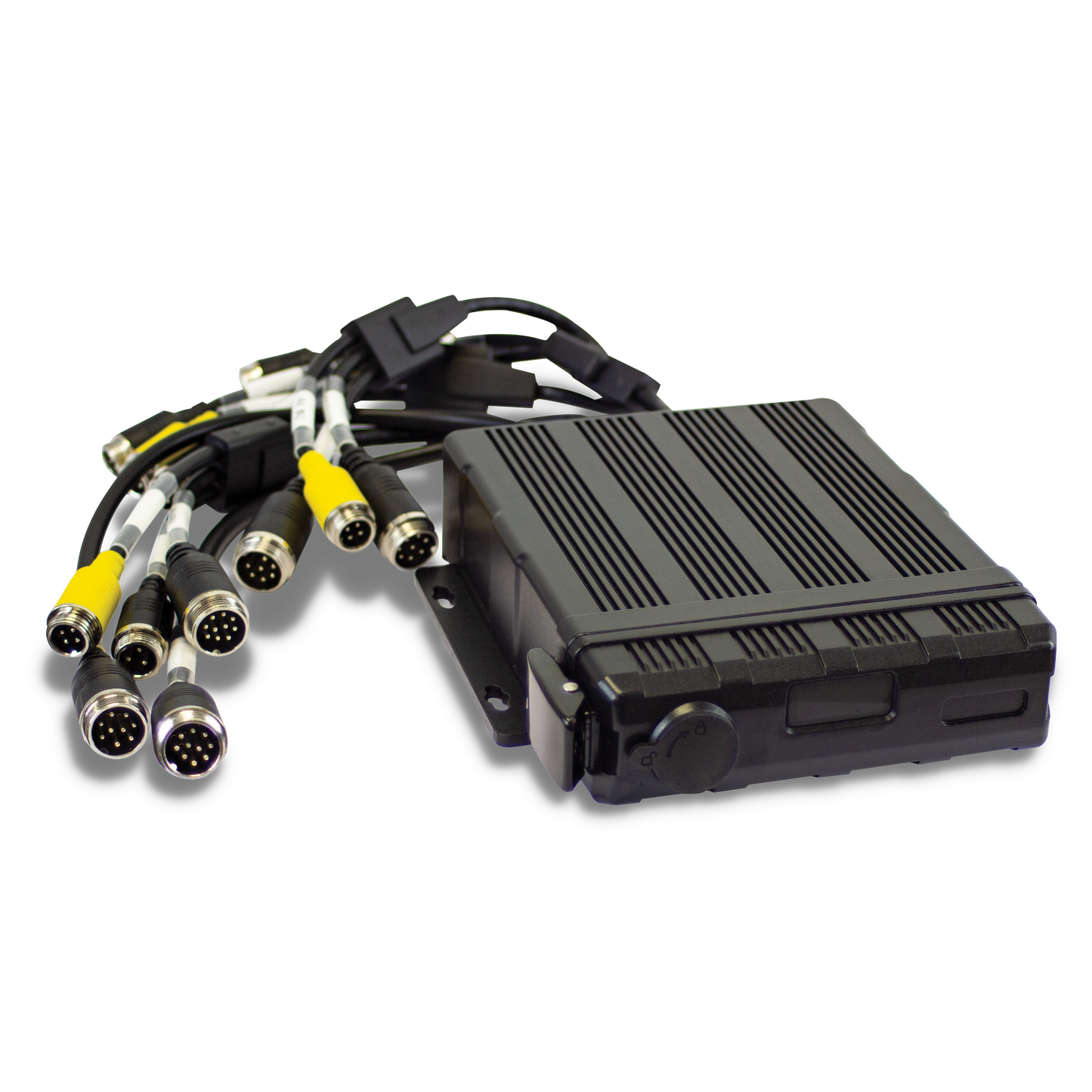

5 Channel MDVR (4CH + 1CH IP) with WiFi & GPS with Forward Facing Camera and 2 Side View Cameras. One TB SS Hard drive

• Operating system Linux

• Operating interface

• Graphical menu interface

• Video permission Administrator & user setting

• 1CH 6pin aviation connector output

• NTSC: 30FPS Compression H.264 main profile

• Total resources 1080P PAL: 200FPS NTSC: 240FPS

• Record format Synchronised video & audio recording

• Audio compression ADPCM Image resolution

• Power on recording, timed recording, motion detection recording

• G-force trigger recording, over speed recording

• Video input Max 4ch 1080P analogue HD CVBS output

• VGA output 1CH 10PIN connector output, 1080P Video display 1 or 4 or 4CH Video standard PAL:25FPS

• Audio input 4 channels

• Audio output 1 channel

• 4*1080P(1920*1080)

• 4-channel custom alarm recording, panic button trigger recording

• Dimensions: (L) 16 x (W) 12 x (D) 3.5cm

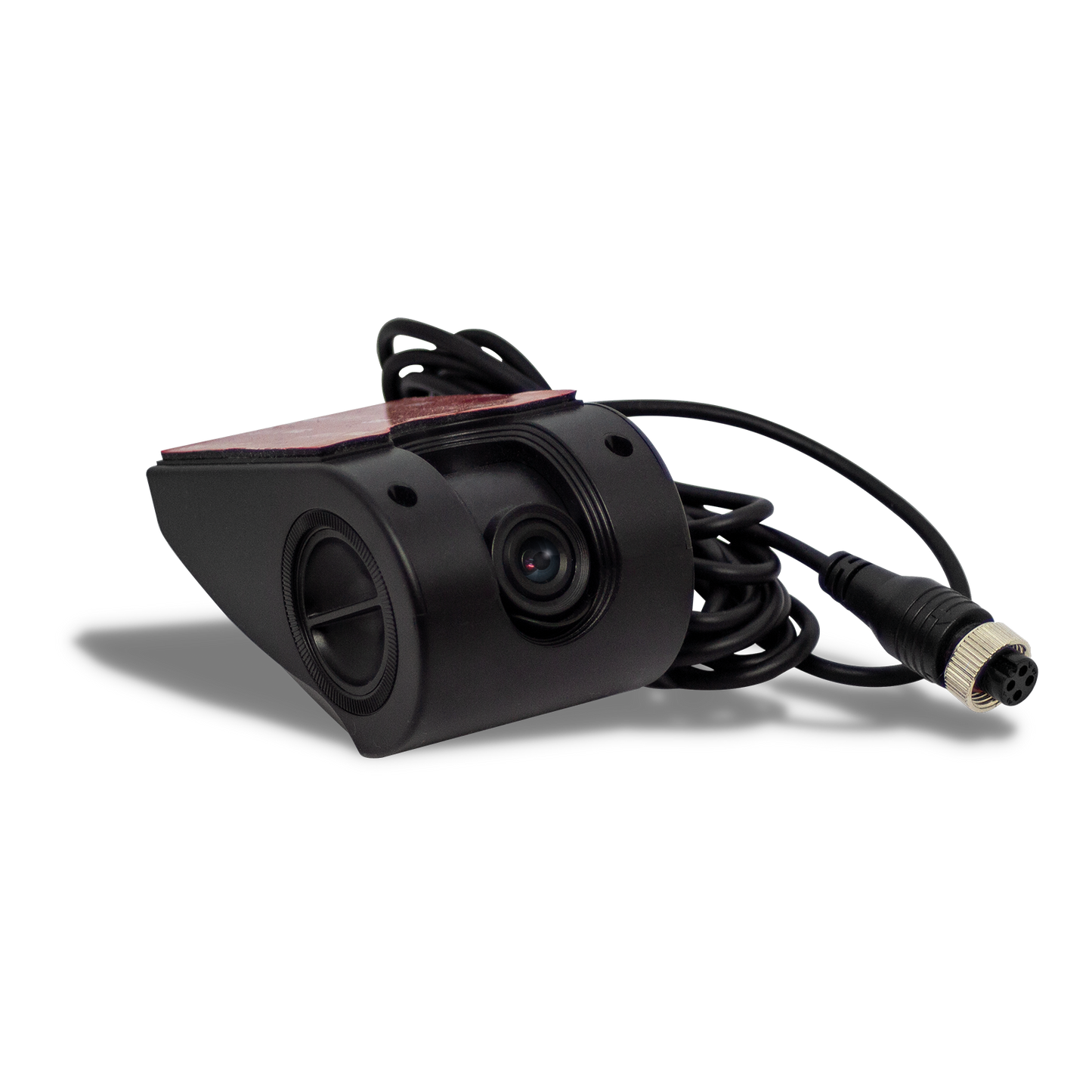

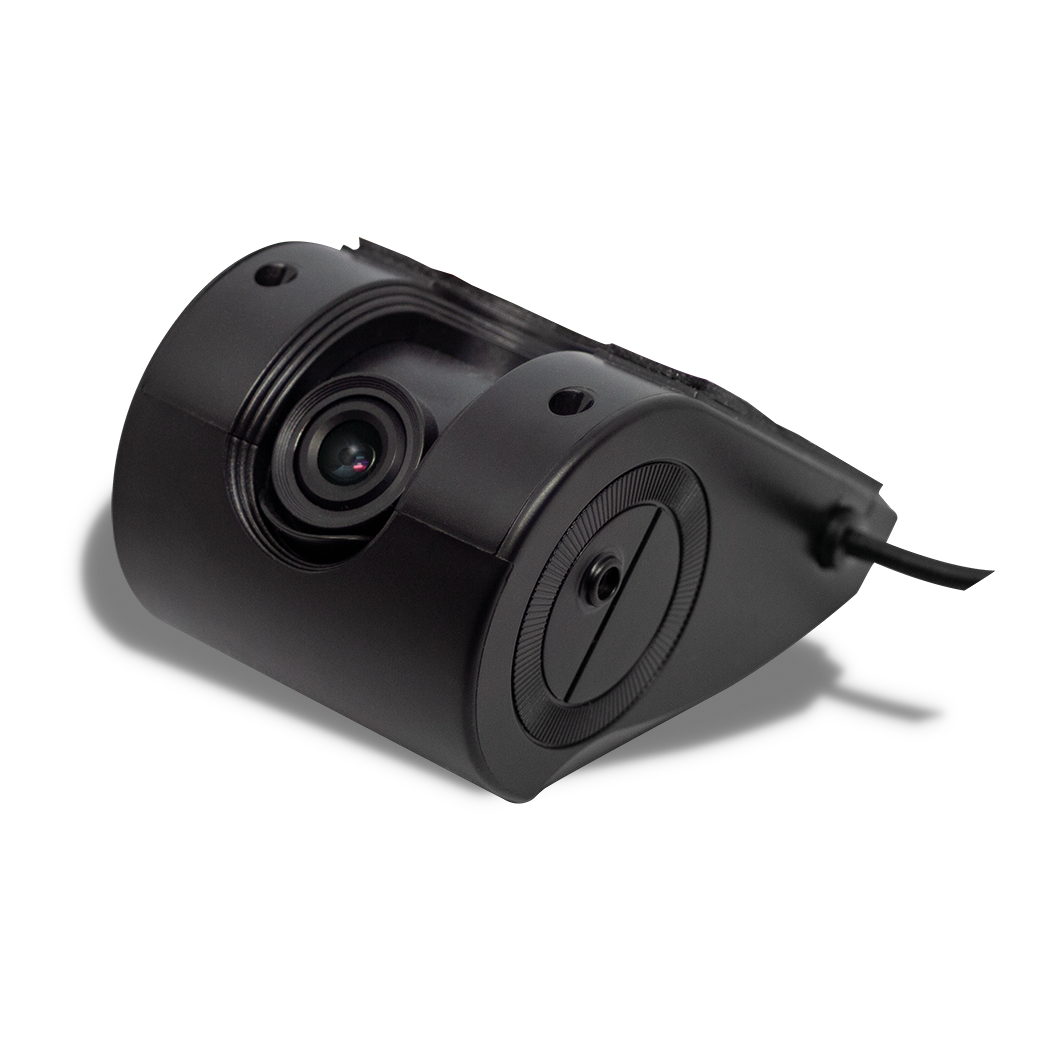

Front view camera, windscreen mounted by adhesive pad, complete with adjustable 1080P lens & WDR image processing. Specification: • Voltage: 12V • IP Rating: Non Waterproof (Internal) • Viewing Angle: 120º • PAL • WDR (wide dynamic range) • Mounting Methods: 3M Pad on windscreen • Connection: 4 Pin • Resolution: FHD 1920 x 1080p • Cable Lengths: 3M • Power Consumption: 0.45A • Dimensions: 80mm (W) x 50mm (H) x 55mm (D) • Working temperature: -20ºC ~ +70ºC

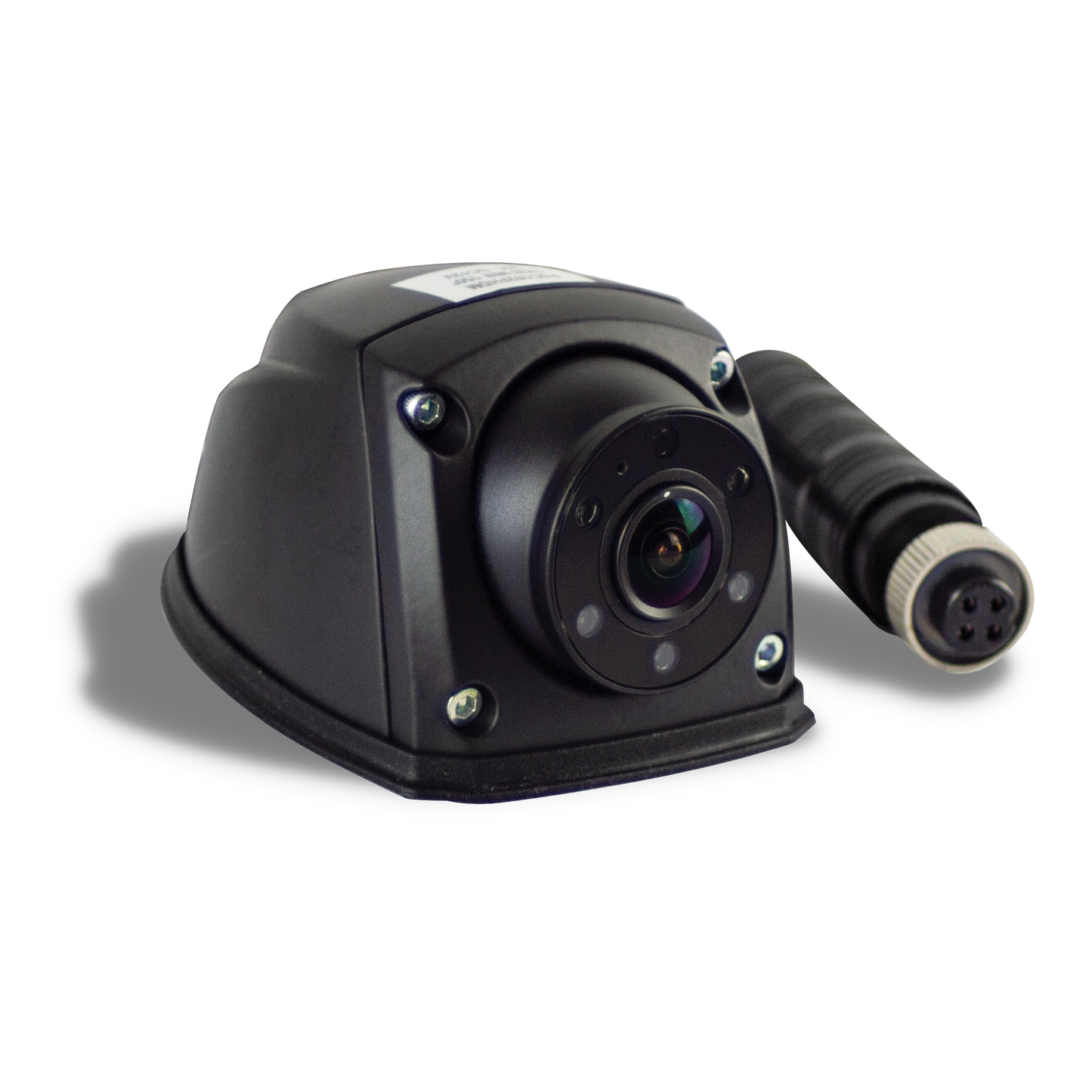

FHD Side Camera • Voltage: 12V • IP Rating: IP69K • Viewing Angle: 170º • PAL • IR: 6 LED's (5m Distance) • Mounting Methods:Bolt Mount • Connection: 4 Pin • Resolution: FHD 1080P • Cable Lengths: 5M • Power Consumption:0.5A

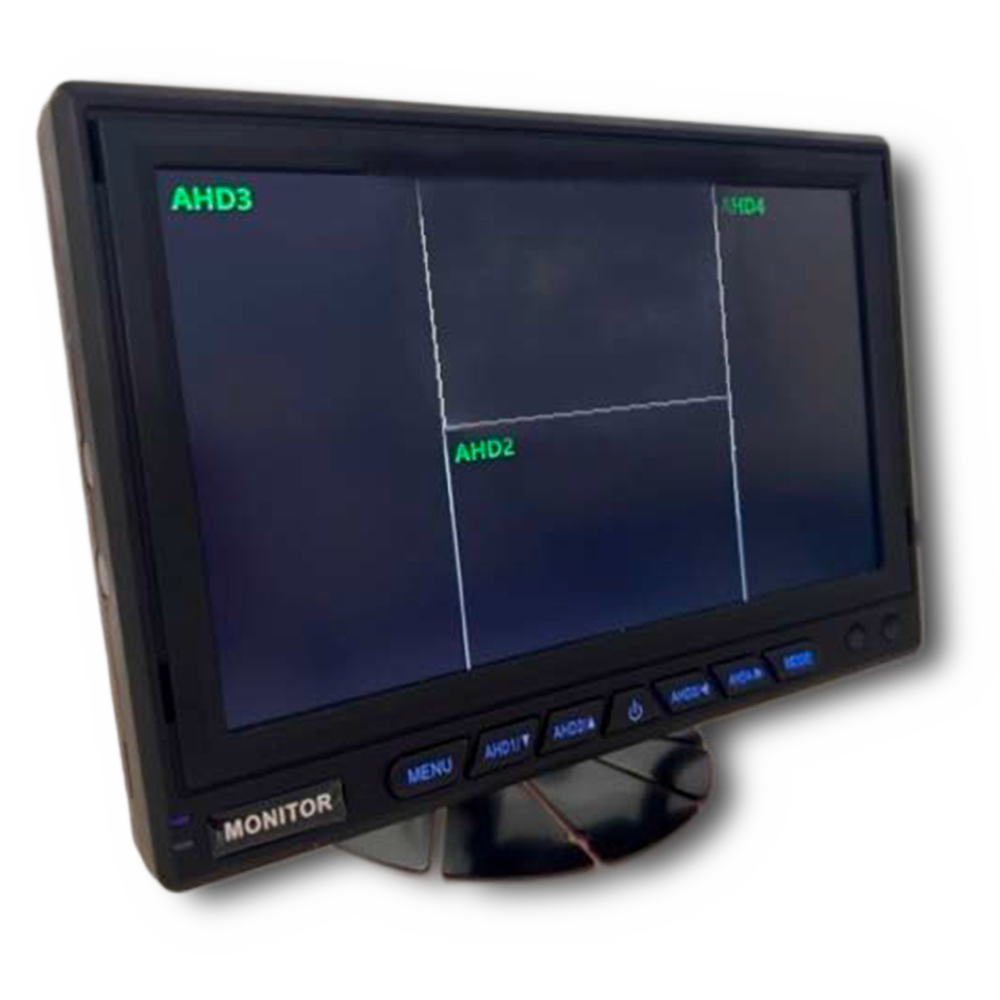

FHD QUAD Monitor with 4 triggers and multi-view technology • Power: 8 ~ 36V DC • Screen Size: 7" • Format: PAL / NTSC, Auto Switching • Resolution: 1024 x RGB x 600 • Backlight: LED • Viewing Angle: U-180°; D-180°; L-180°; R-180° • Video Input: 2 Channel • Input Connection: 4 pin Aviation • Video Resolution: 1080P / 720P / CVBS, Auto Adjust • I/O Trigger 2 Channel (V2>V1) • Gross Weight: 600g • Screen Sensitivity: Auto Adjust light Day / Night
