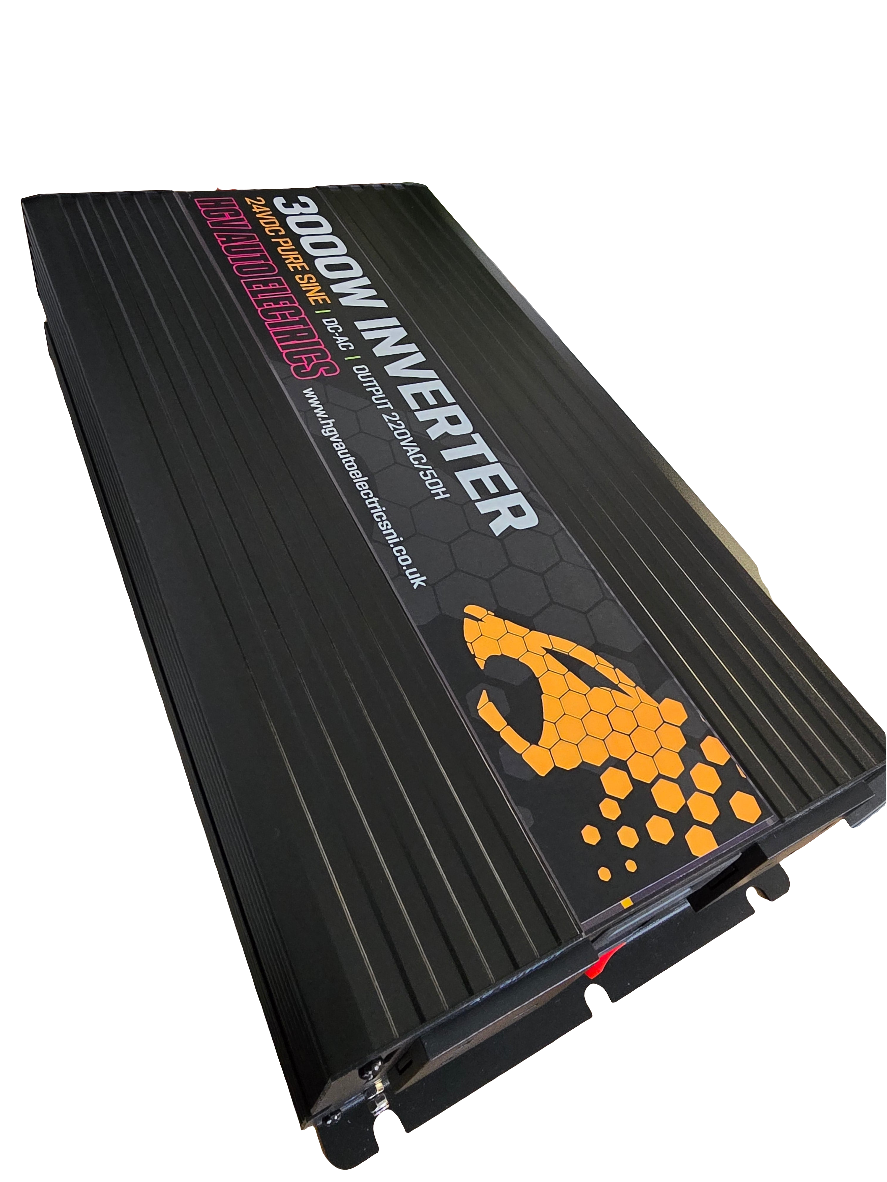

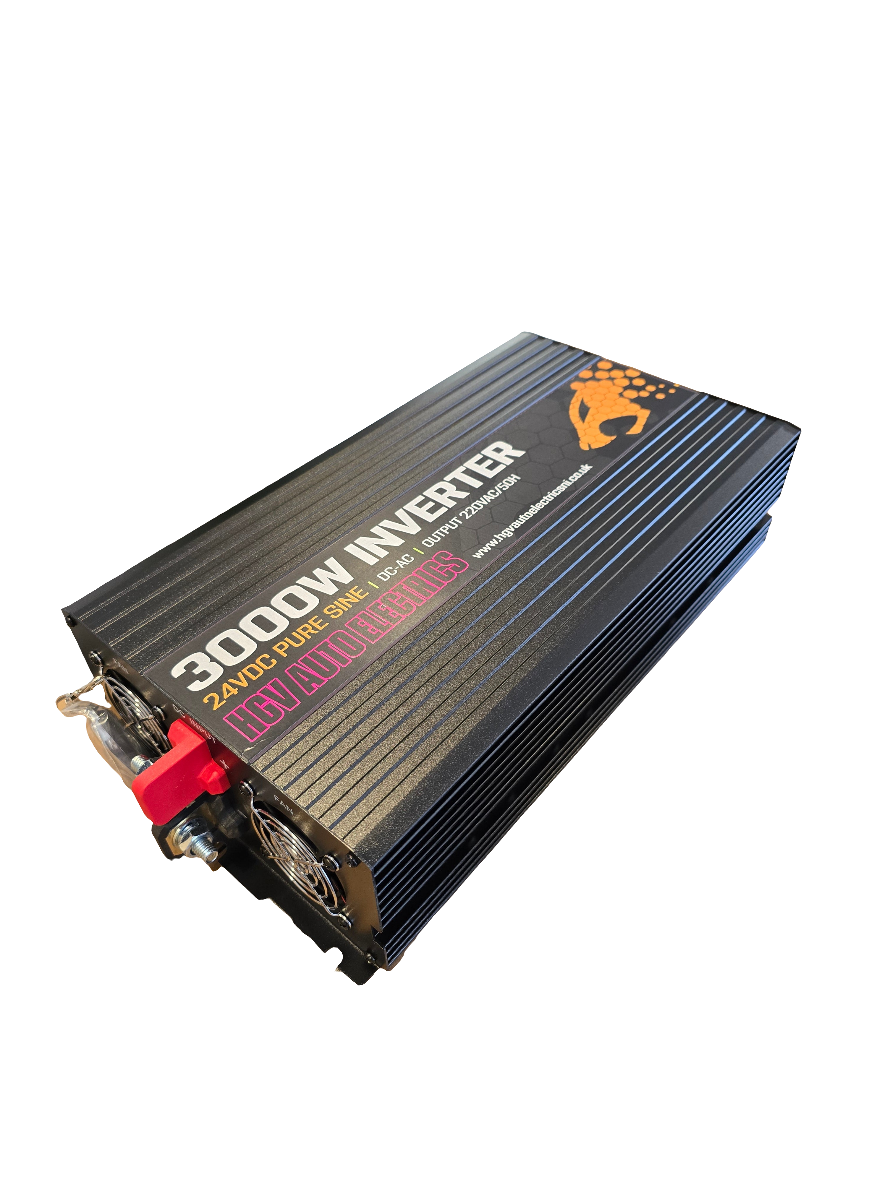

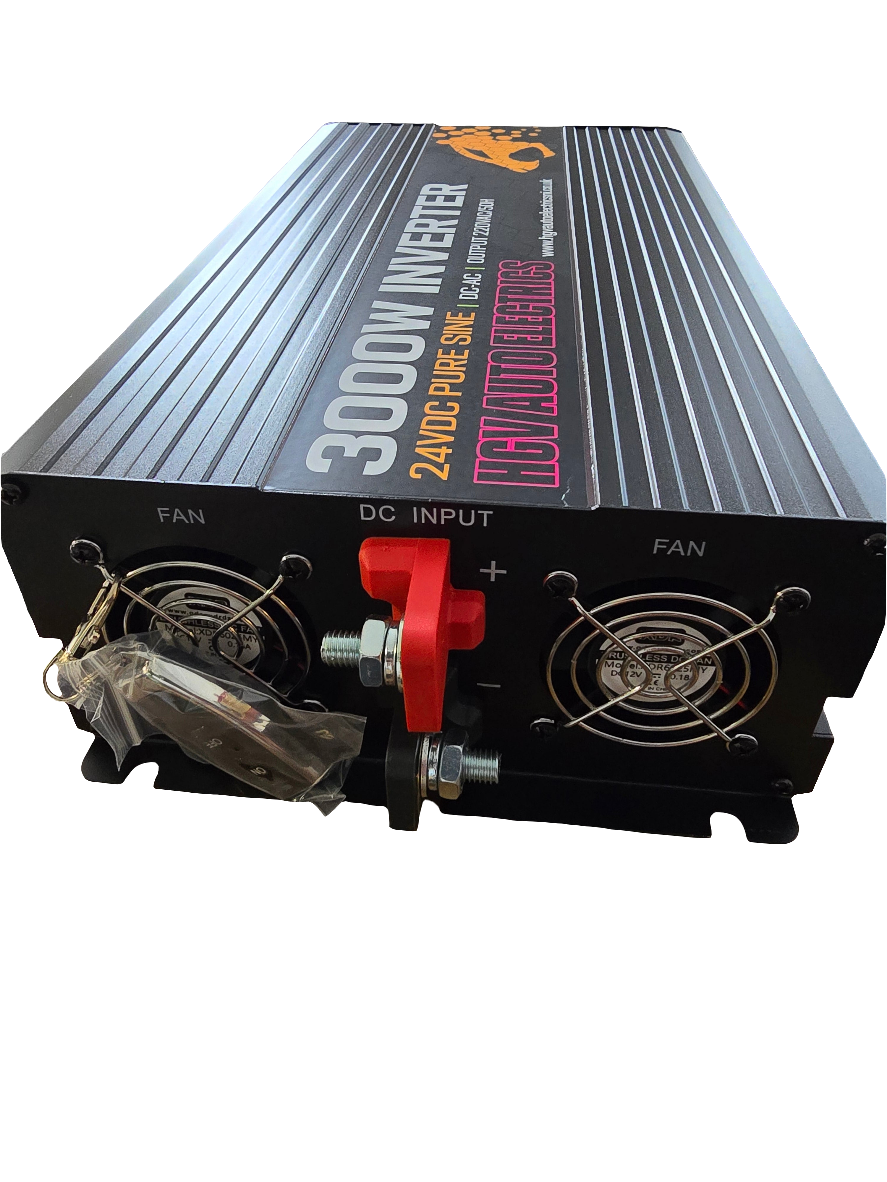

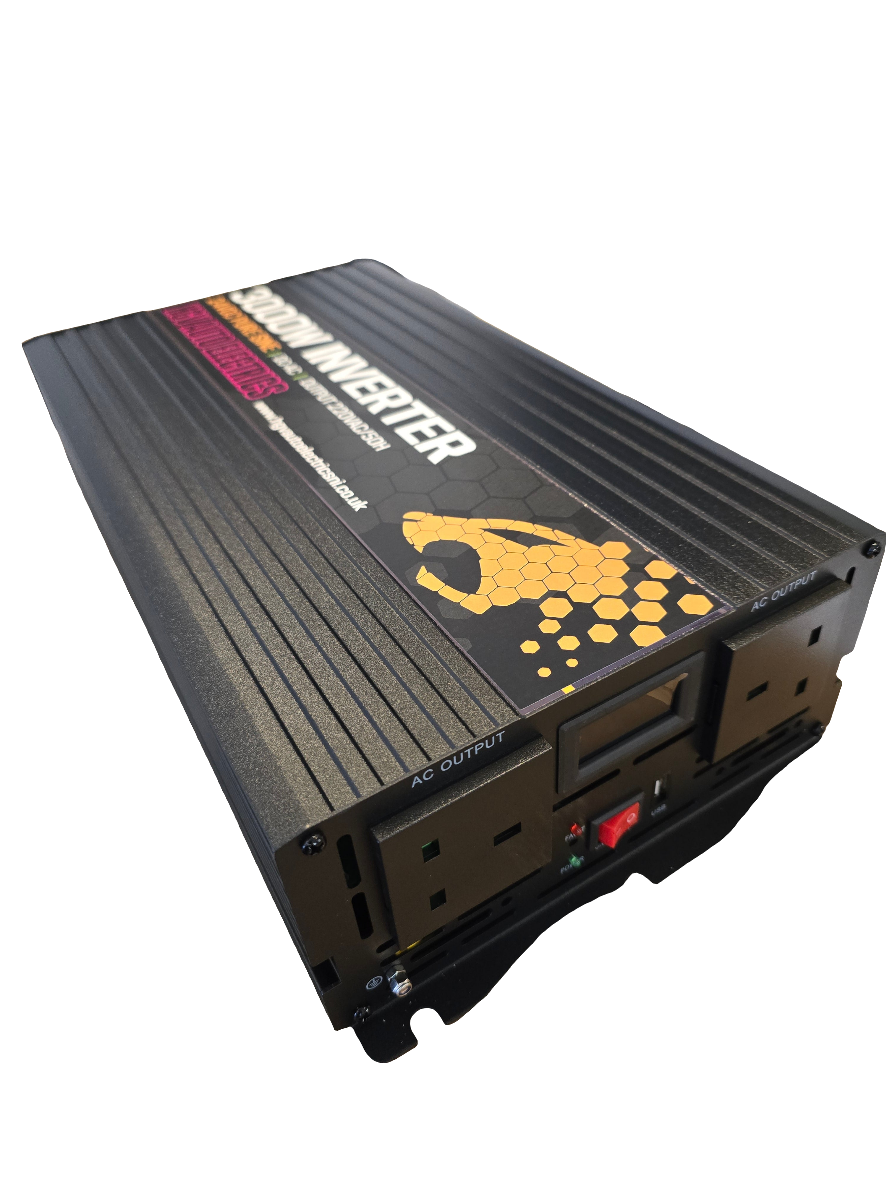

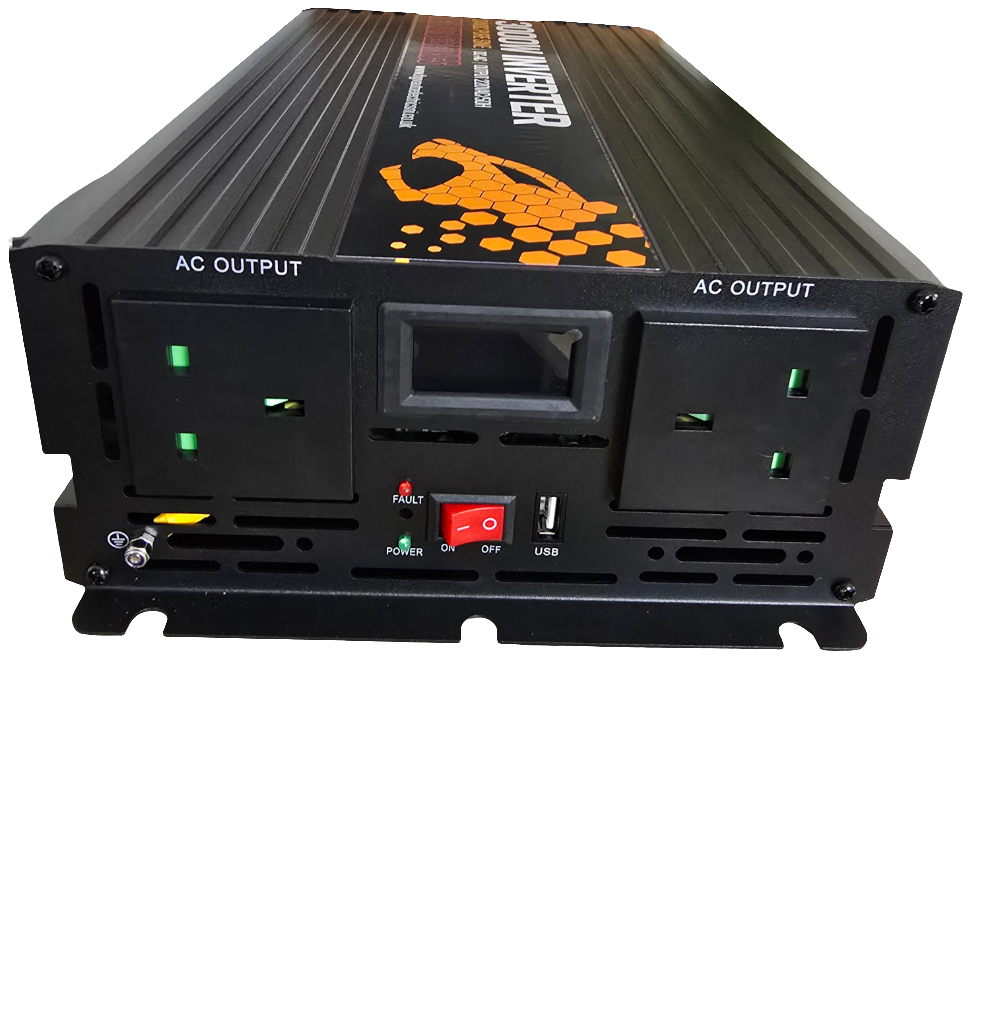

HGV Auto 24v Pure Sine Inverter 3000watt

3000 Watt

• Rated Power 3000w
• Peak Power 6000w
• Input Voltage DC24v
• Output Voltage 220VAC/50hz
• Unload current less than 1a
• Output frequency 50Hz +0.5
• Output waveform Pure Sine
• Waveform Distortion THD3% Liner Load
• Max Efficiency 92%
• Input voltage range 21v - 31v
• Low voltage alarm 21v
• Low voltage protection 20v
• Over voltage protection 31v
• Low voltage recover 24v
• Over voltage recover 29.5v
• Working temp -10 +50
• Dimensions 415x205x95
• Weight 5kg
• Warranty 2 Years
• Air Cooled

Protection functions and alarms

1. Over voltage. Red light on and shut down
2. Low voltage. Alarm sound, voltage reduce, red light on, shut down
3. Over load. Red light on and shut down
4. Over temp. Alarm sound, temp continues to rise, red light on, shut down
5. Short circuit. Red light on
6. Input reverse polarity. Fuse burn out.
