Ford Transit 2014+ Brake Light Camera and Mirror Monitor Parksafe

Description

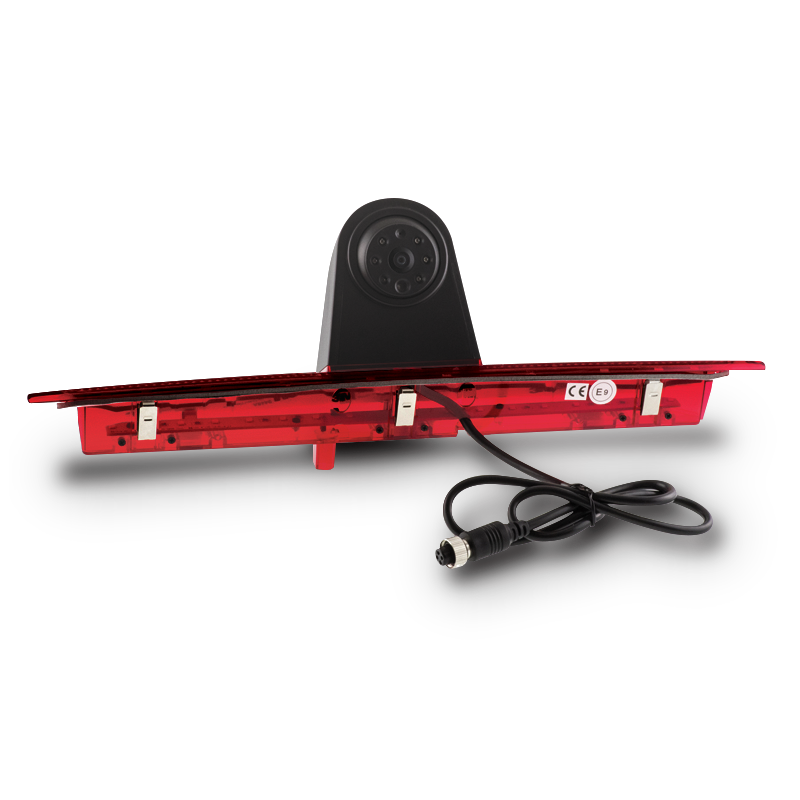

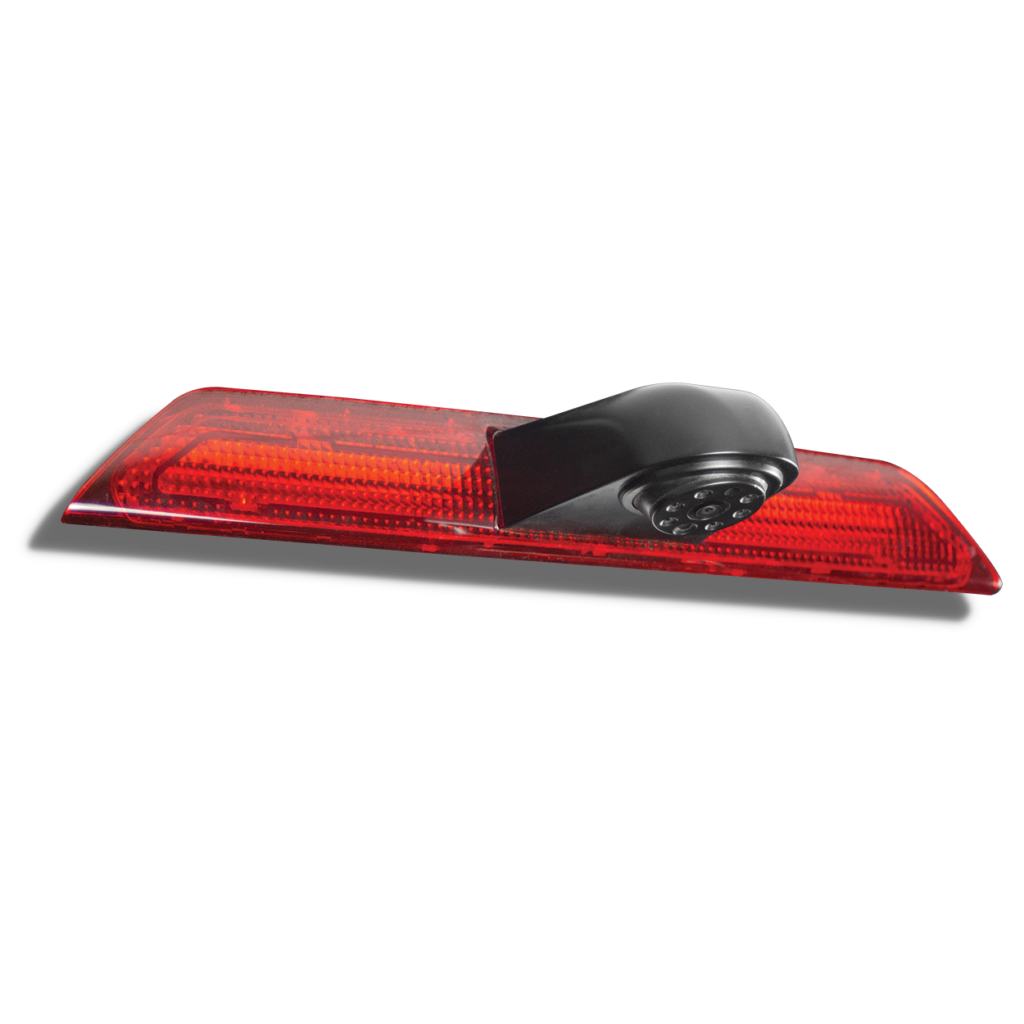

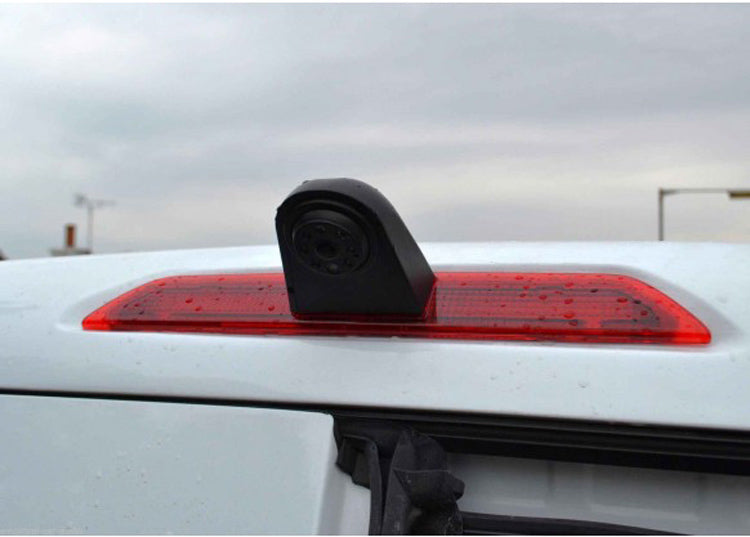

Brake Light D1 resolution camera with six IR lights for

Ford Transit 2014- Present day

Ford Transit Custom 2012- Present day (Tail Gate Up and Over Door)

Specification

 Voltage: 12V DC

IP Rating: IP68

Viewing Angle: 130º

NTSC & PAL Switchable

IR: 6 LED’s (8-10m Distance)

Mounting Methods: Brake Light

Connection: 4 Pin with Phono Adaptor

Resolution: 976 (H) x 592 (V)

Cable Lengths: 10M

Power Consumption: 0.4A

Working temperature: -20  ~ +70

Approvals & Certifications: E Mark, CE, FCC

 Additional information

Camera Resolution

D1

 IP Rating

IP68

 Mounting Options

Brake Light

 Connection Type

4 Pin, 4 Pin With Phono Adapter

Description

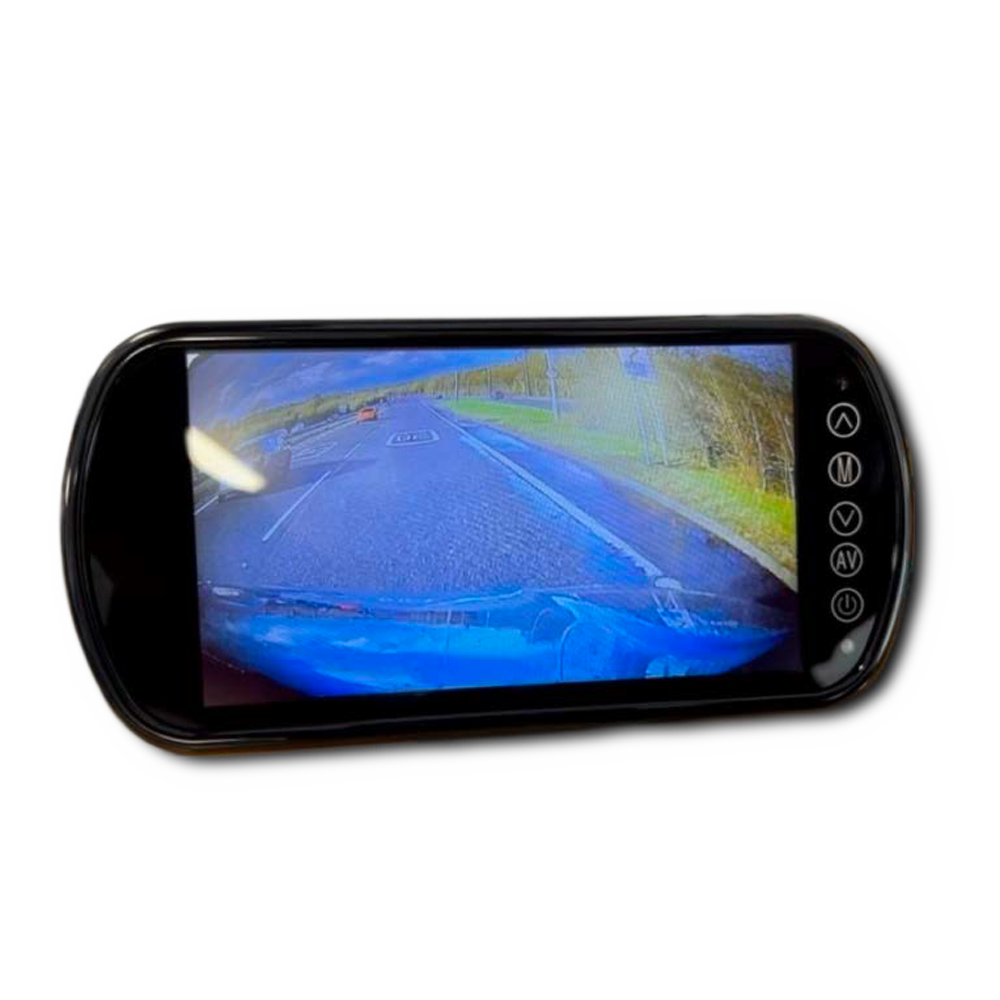

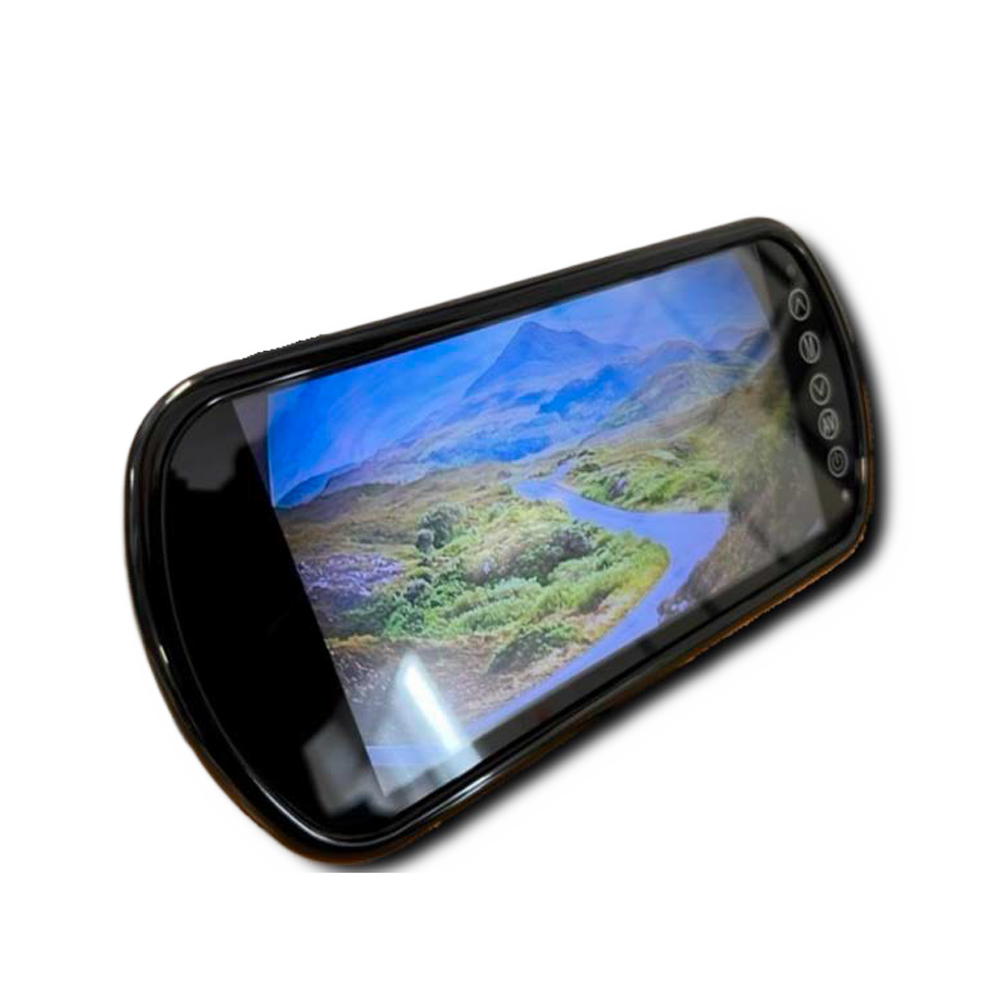

This new 7″ Mirror Monitor will display a full range of camera feeds from D1 to AHD and also FHD. With a crisp, back lit LED display the screen is a great upgrade to compliment the newer, higher resolution cameras that we offer.

Specification:

Power: 8 ~ 36V DC

Screen Size: 7″

Format: PAL / NTSC, Auto Switching

Resolution: 1024 x RGB x 600

Backlight: LED

Brightness: 500cd/mÇ

Viewing Angle: U-180°; D-180°; L-180°; R-180°

Contrast Ratio: 500:1

Video Input: 2 Channel

Additional Specification:

Mirror Monitor

Input Connection: 4 pin Aviation

Video Resolution: 1080P / 720P / CVBS, Auto Adjust

I/O Trigger 2 Channel (V2>V1)

Operating Temperature: -30°C ~ +70°C

Gross Weight: 600g

Screen Sensitivity: Auto Adjust light Day / Night
