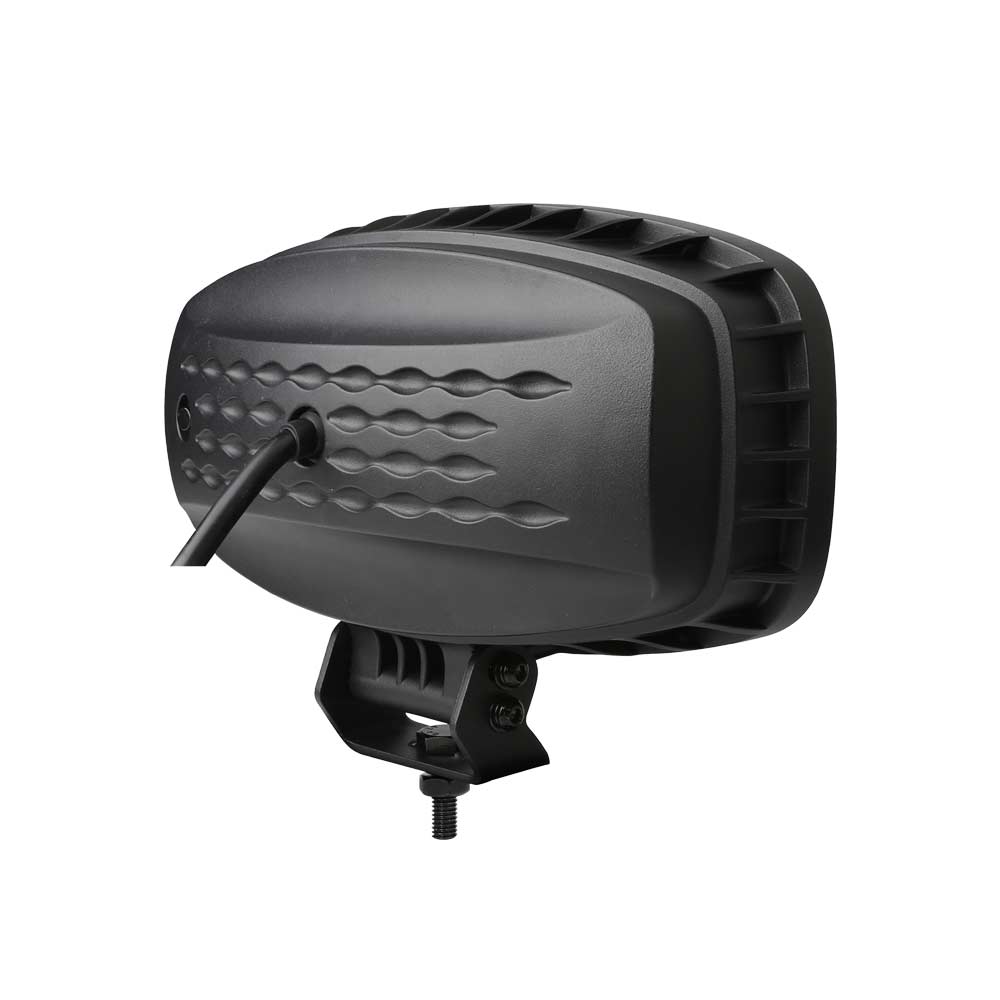

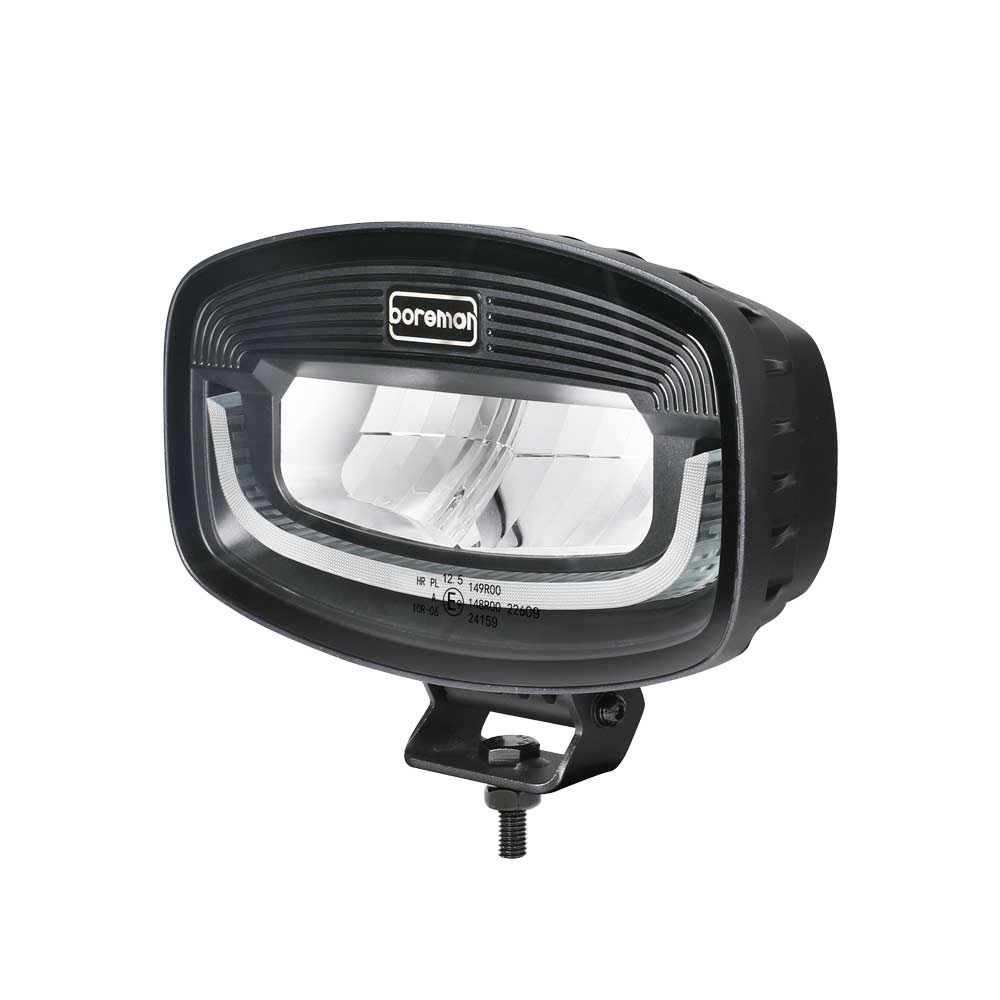

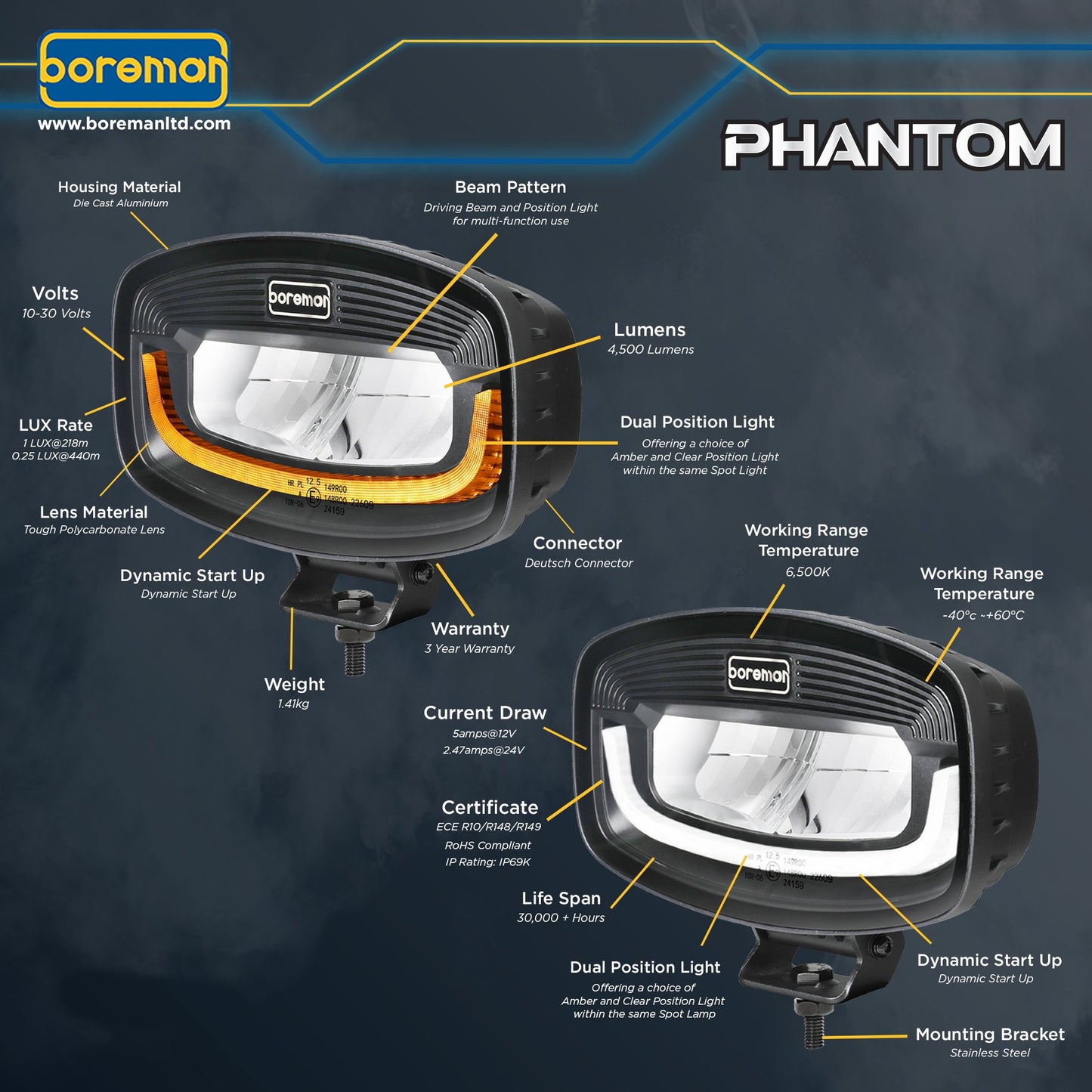

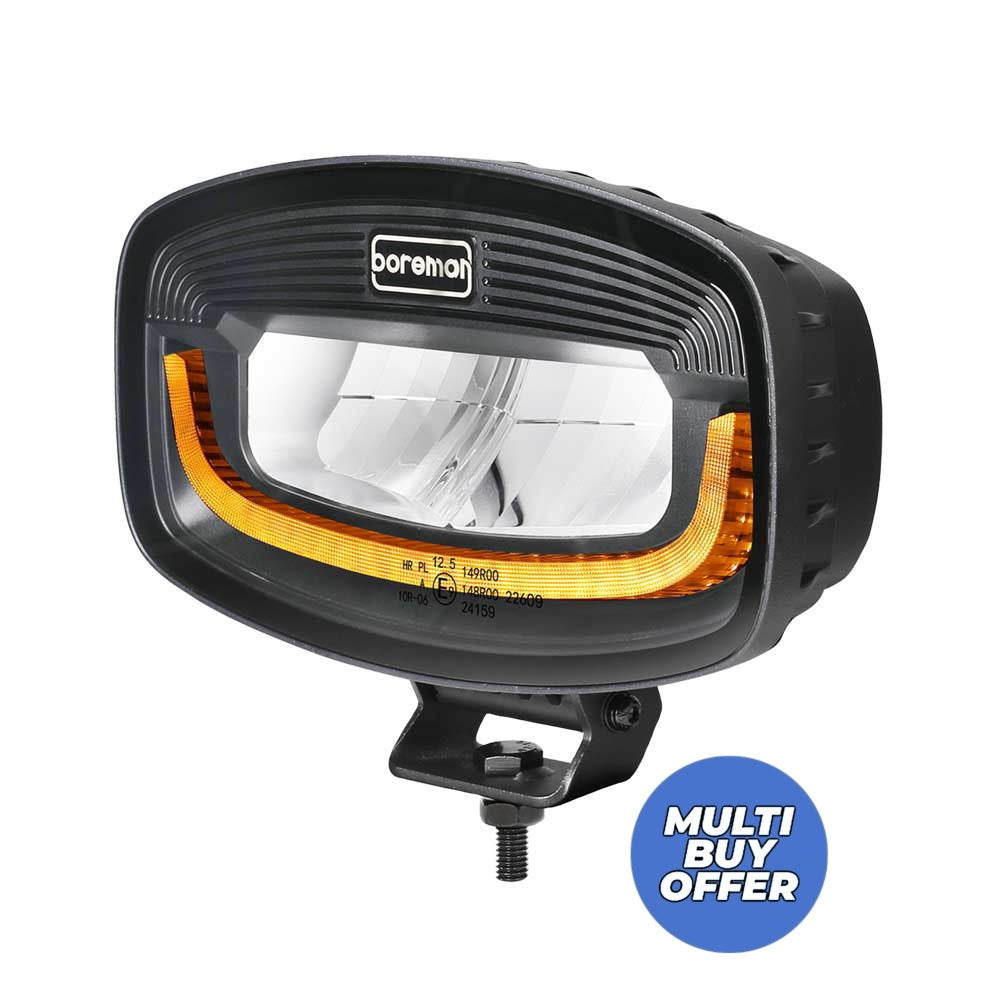

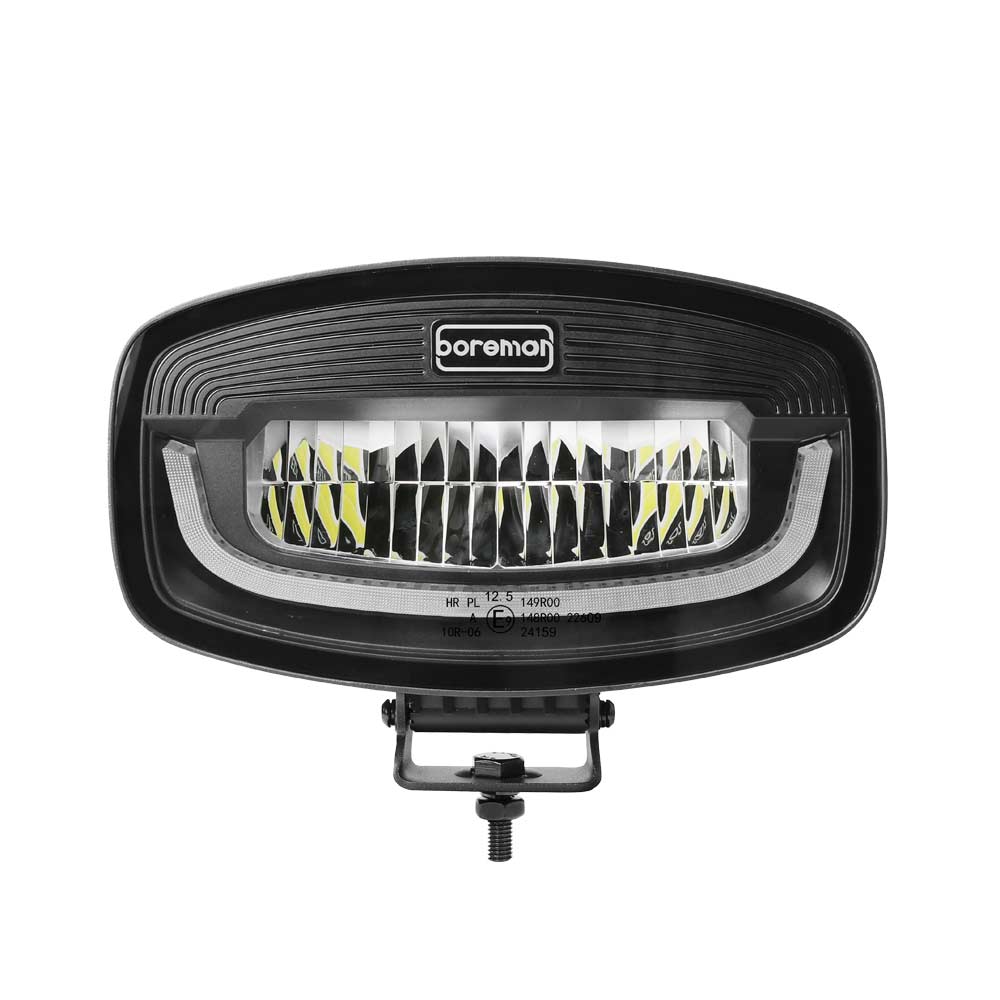

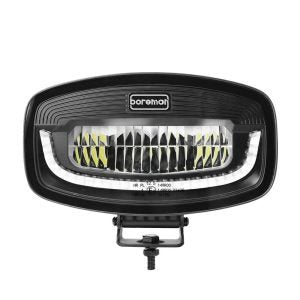

BOREMAN PHANTOM – PART NO.: 1001-2670

DYNAMIC START UP

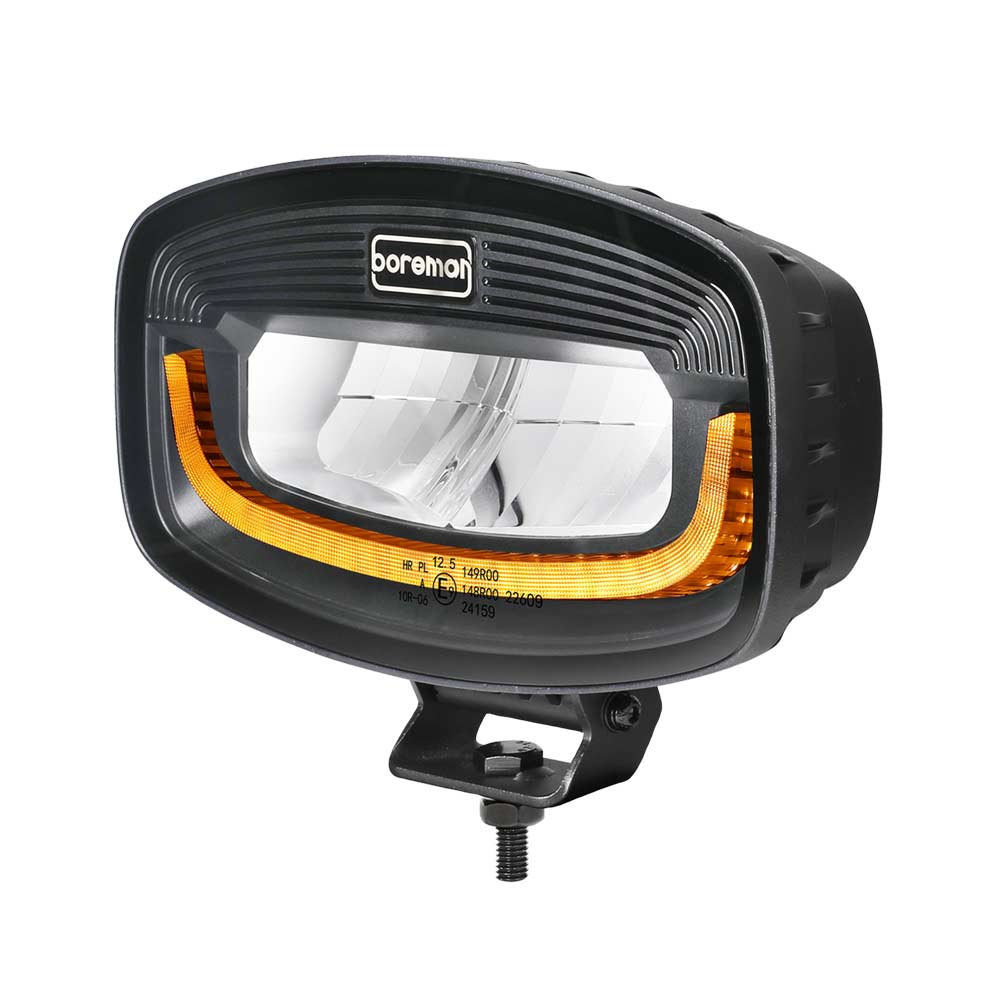

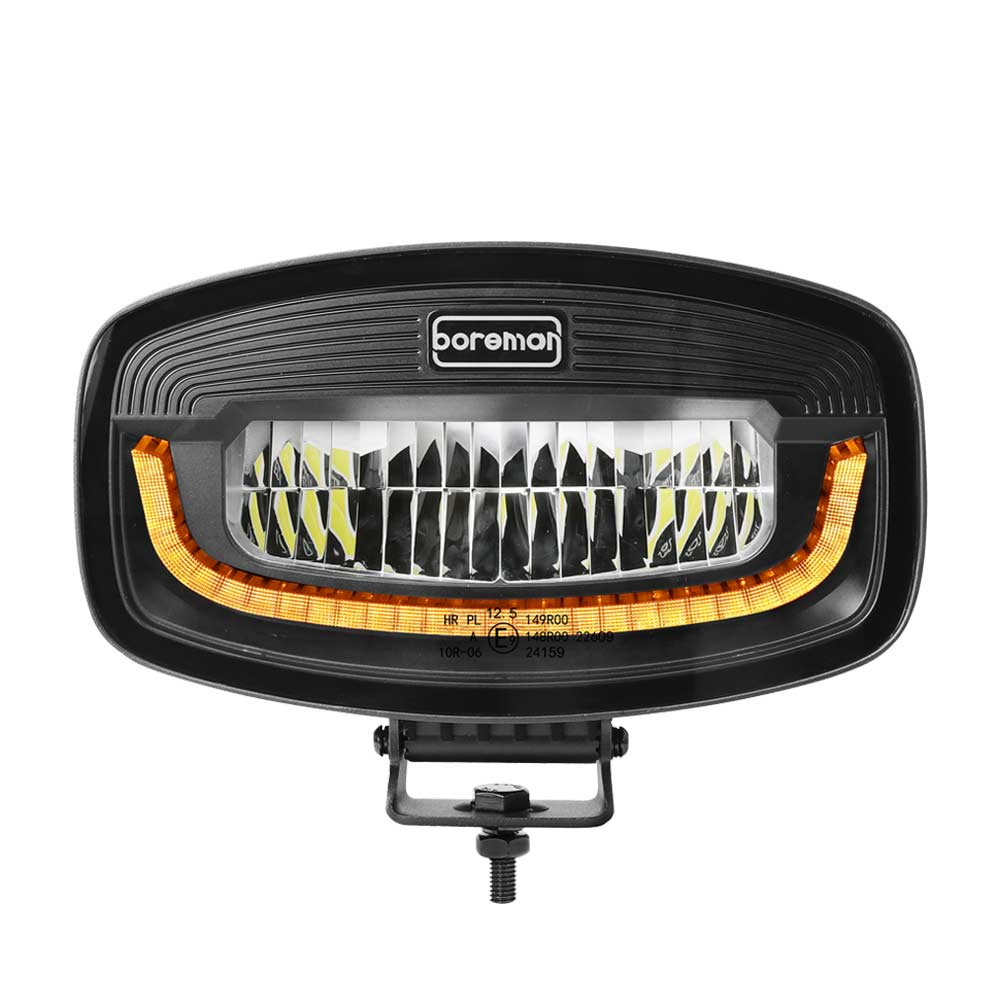

Position Light in Amber and Clear

LED Quantity – Driving Beam – 2pcs – 60W – Clear

LED Quantity – Position Light – Amber – 30pcs – 1.7W

LED Quantity – Position Light – Clear – 30pcs – 1.7W

Voltage: 10-30V

Lumens: 4,500lm

Current Draw: 5amps@12V & 2.47amps@24V

LUX Rate: 1 LUX@218m | 0.25 LUX@440m

Housing Material: Die Cast Aluminium

Mounting Bracket: Stainless Steel

Working Range Temperature: 6,500K

Lens Material: Polycarbonate

ECE R10/R148/R149

RoHS Compliant

IP Rating: IP69K

Connector Method: Deutsch Connector

Weight: 1.4kg

Life Span: 30,000+ Hours

3 Year Warranty
