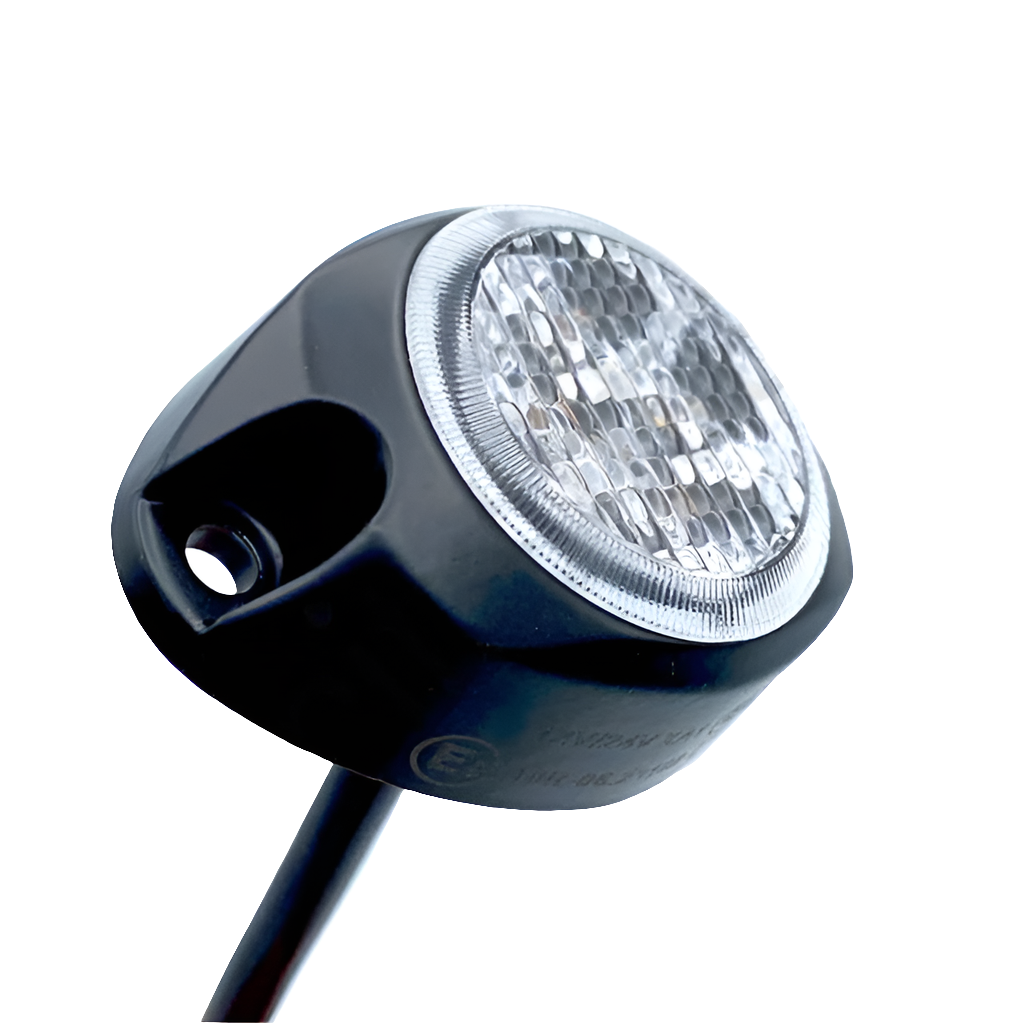

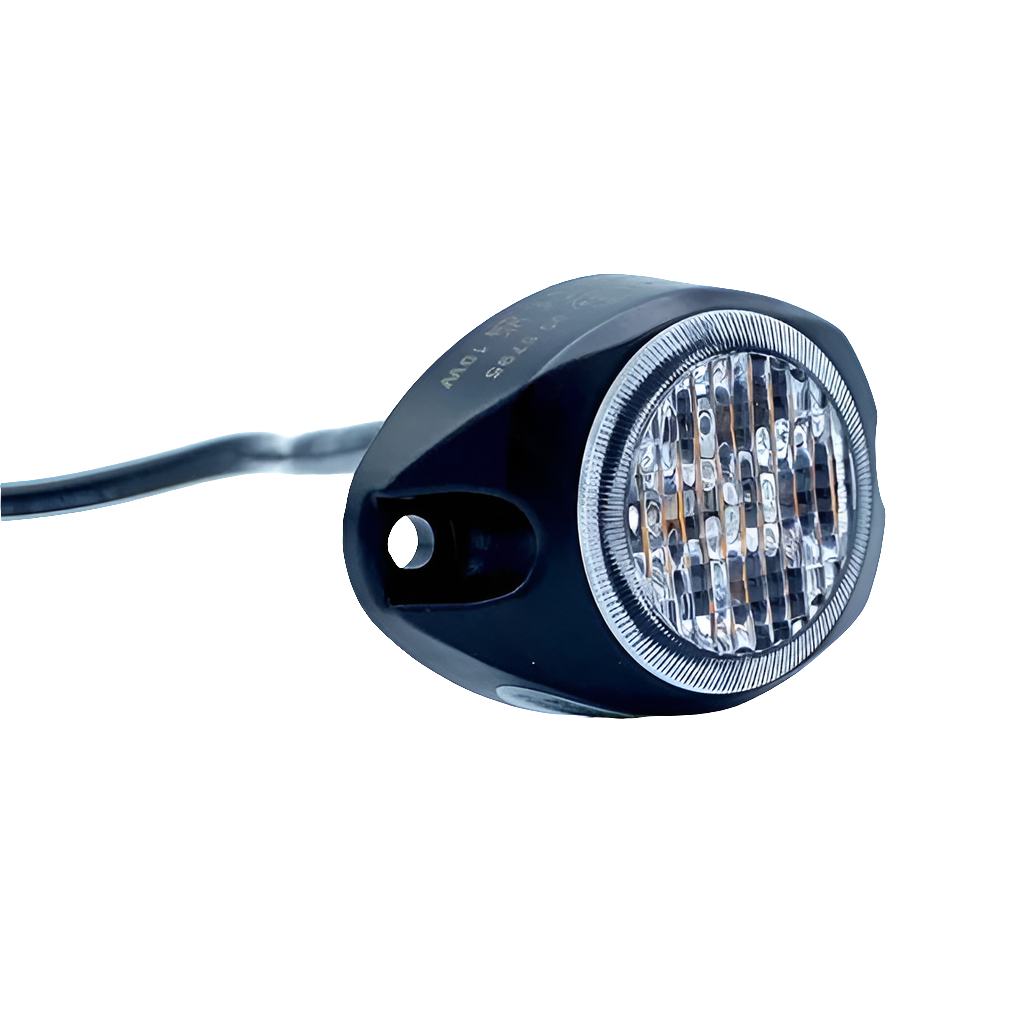

Amber Strobe. Round. Surface Mount

COV08 / COV09:
Multi Voltage input 9-30VDC.
4 x High Powered LED's.

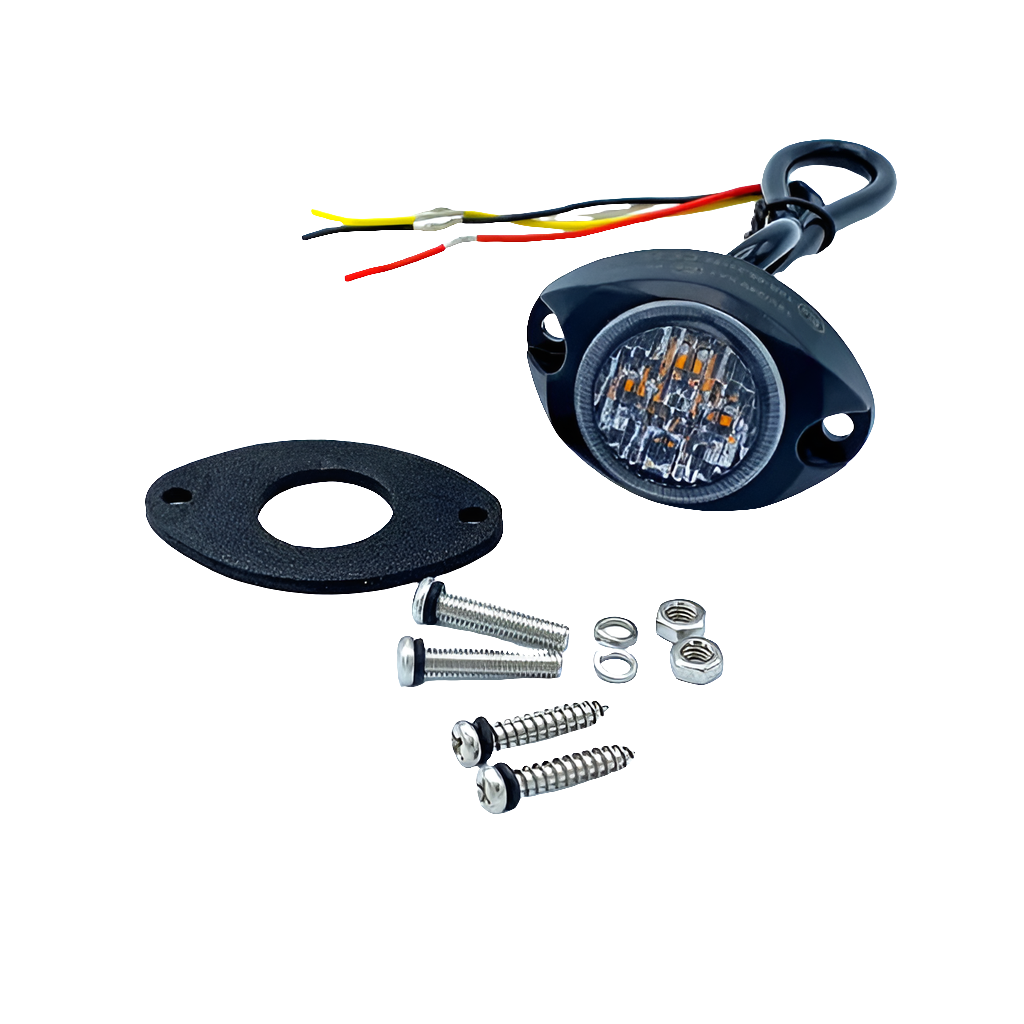

Mount: Recessed fit with 'L' bracket (Included) or Surface mount options.
21 Flash Patterns.
Sync up to 12 lights in 2 separate groups.
​​Wire: Red - Positive.
Black - Negative.
​ Yellow - Flash Pattern selection & Sync (apply to black for next flash pattern)
​ White - Low light intensity mode.
FEATURES:
Up to 100,000 hours rated Long-Life LED​.
Built in selectable flash patterns.
Memory recall for last flash pattern used at power up.
​Weatherproof and vibration resistant, Jet wash approved IP69K.
Aluminium base for excellent heat dissipation.
Reverse polarity protectio.n
UV resistant lens.
Warranty: 3 Years.

APPROVALS:
ECE EMC R10, ECE R65 Class 1, E-Marked, CE, UKCA, IP67 / IP69K, CISPR 25 Class 3, SAE J595 Class 1.
​
DIMENSIONS:
COV08 Light head: W38mm: x D:23mm
With Bracket: W: 52.5mm x H:42.1mm
Hole size required: 31.6mm

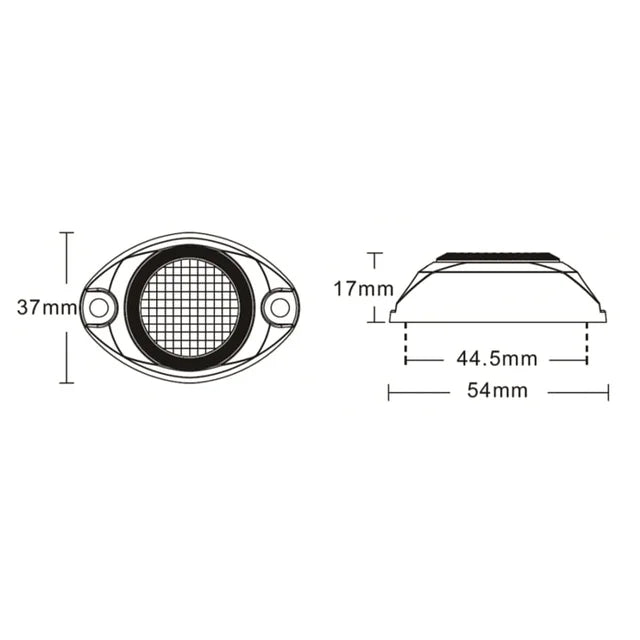

COV09 Light head: W:54mm x H:37mm x D:17mm
Mounting holes distance: 44.5mm. Mounting hole size: 4.5mm.
