HGV Auto 12v Pure Sine Inverter Range

1Kw, 2Kw, 3Kw Options

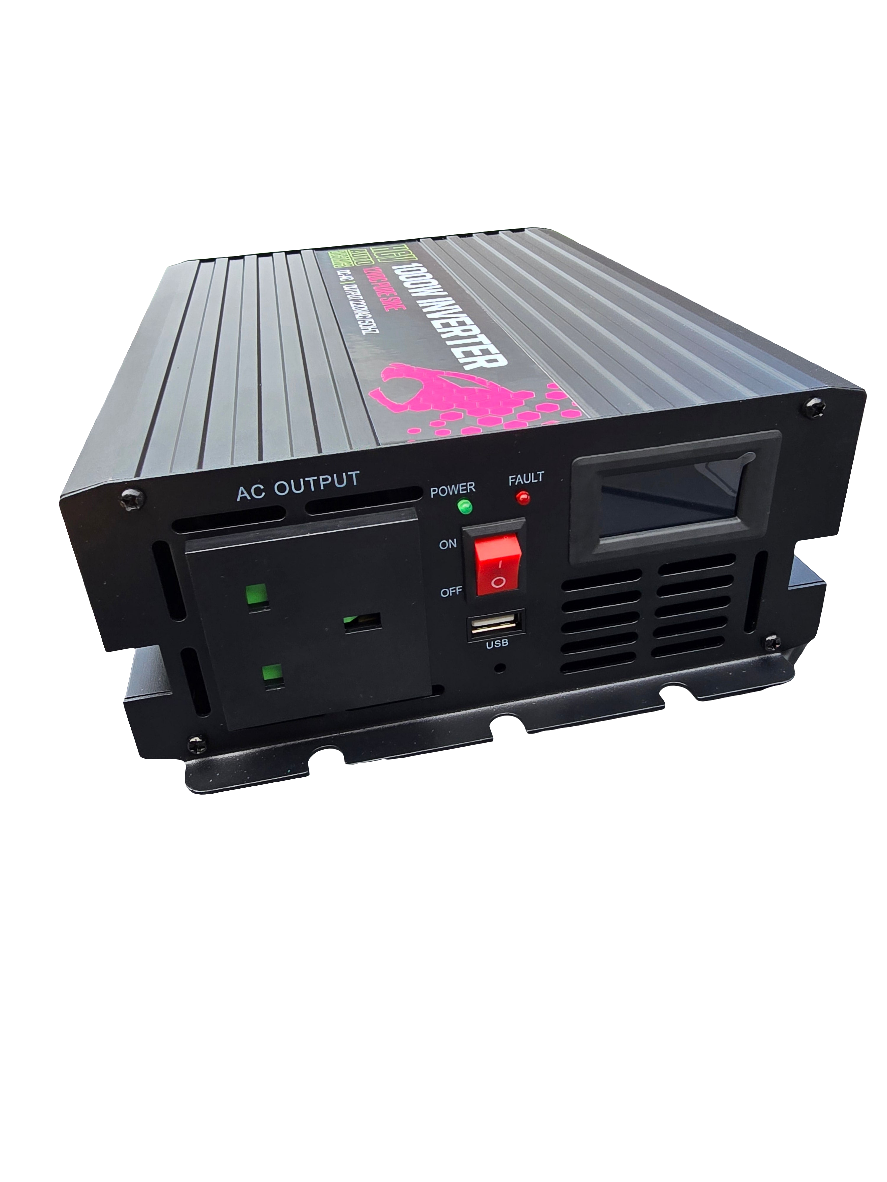

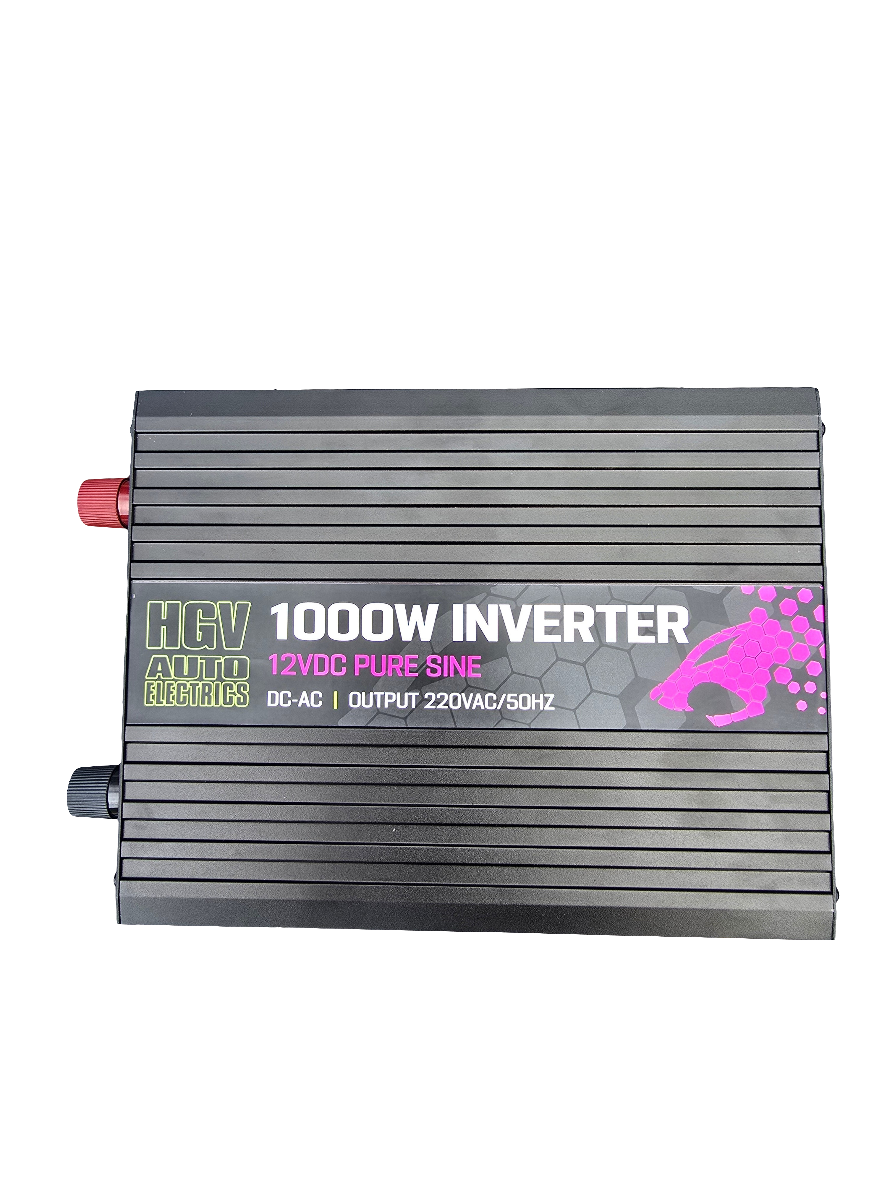

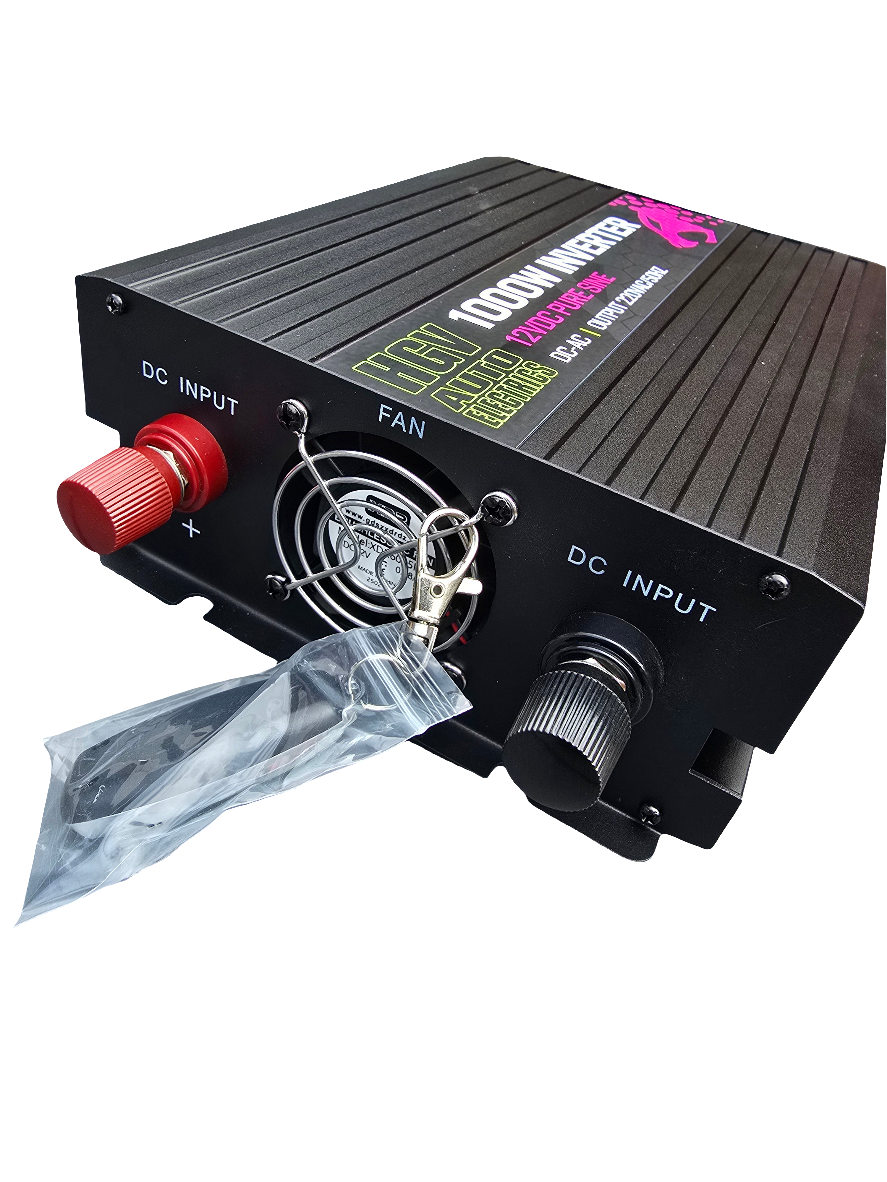

1000 Watt

• Rated Power 1000w
• Peak Power 2000w
• Input Voltage DC12v
• Output Voltage 220VAC/50hz
• Unload current less than 0.4a
• Output frequency 50Hz +0.5
• Output waveform Pure Sine
• Waveform Distortion THD3% Liner Load
• Max Efficiency 90%
• Input voltage range 10v - 15.5v
• Low voltage alarm 10.5
• Low voltage protection 10v
• Over voltage protection 15.5v
• Low voltage recover 12.3v
• Over voltage recover 14.8v
• Working temp -10 +50
• Dimensions 275x180x80
• Weight 2.5kg
• Warranty 2 Years
• Air Cooled

Protection functions and alarms

1. Over voltage. Red light on and shut down
2. Low voltage. Alarm sound, voltage reduce, red light on, shut down
3. Over load. Red light on and shut down
4. Over temp. Alarm sound, temp continues to rise, red light on, shut down
5. Short circuit. Red light on
6. Input reverse polarity. Fuse burn out.

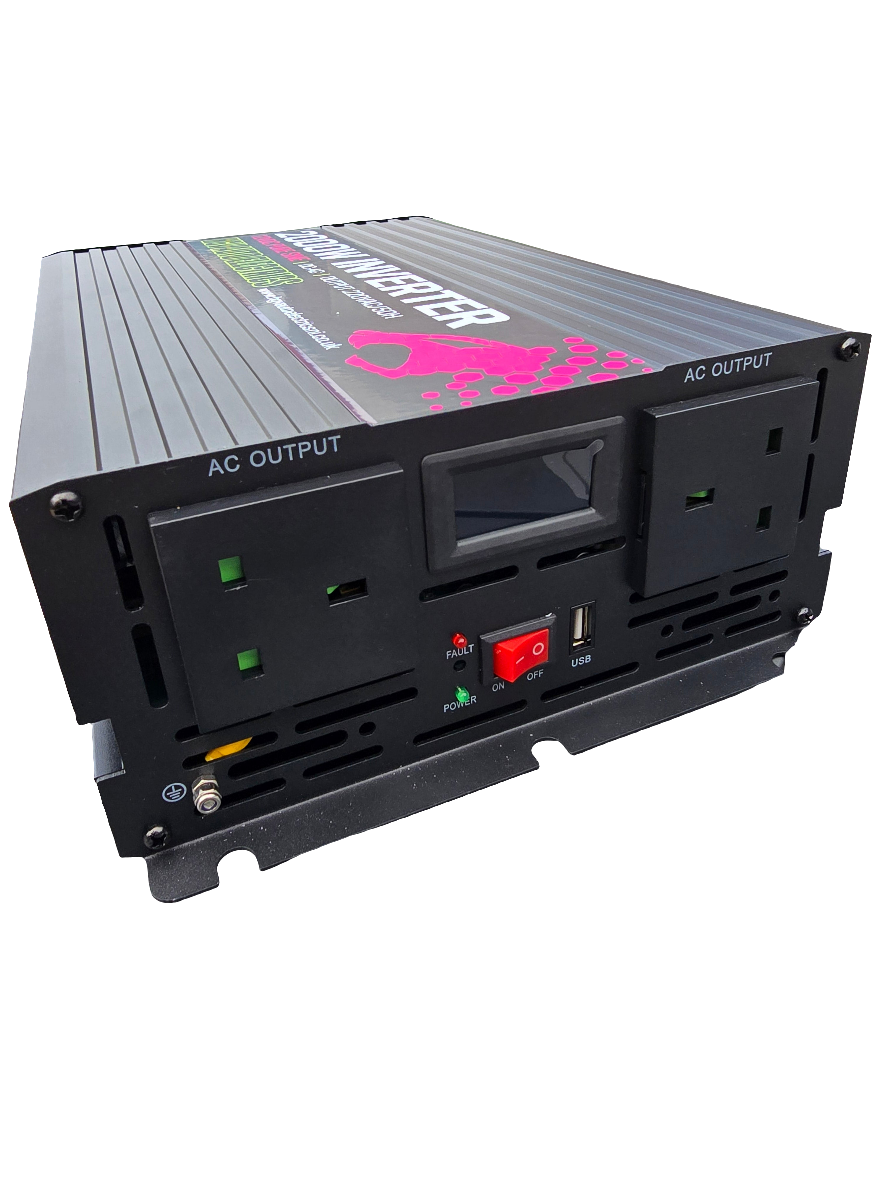

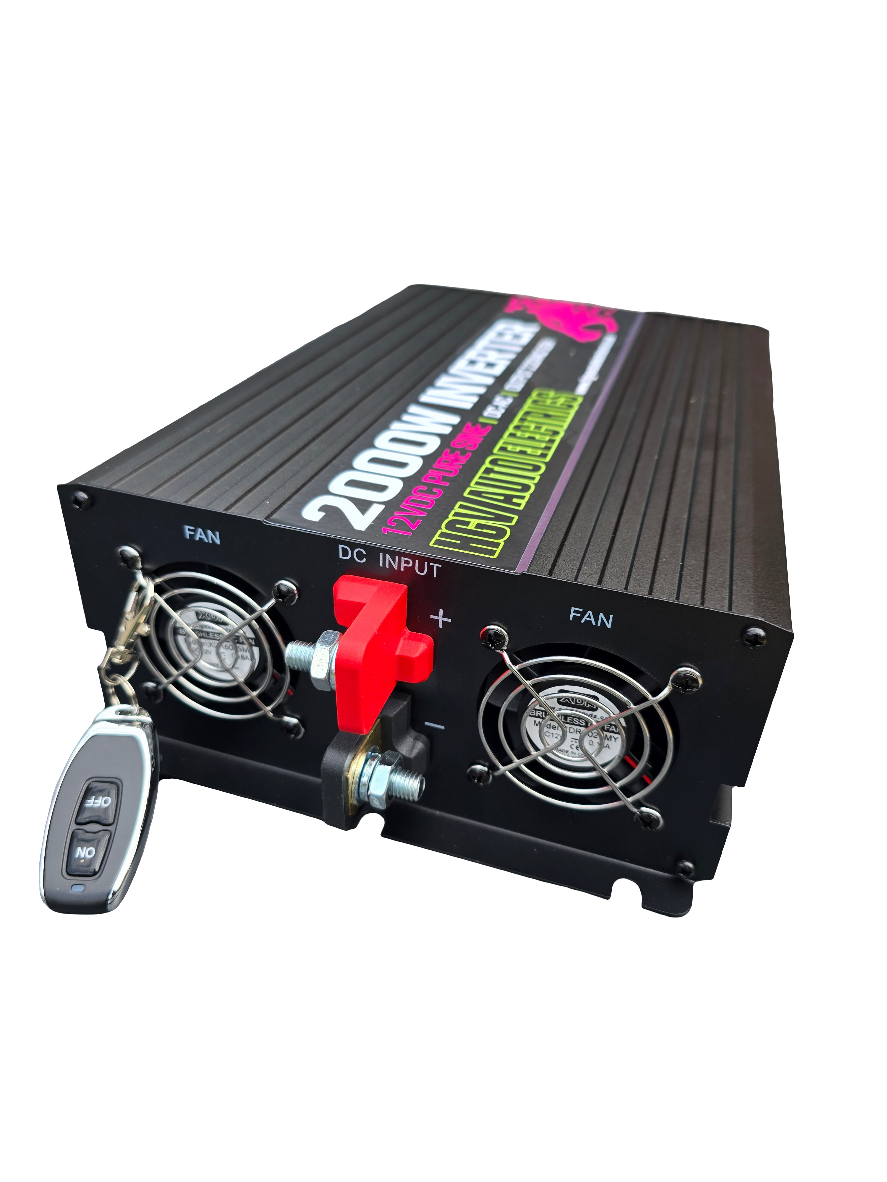

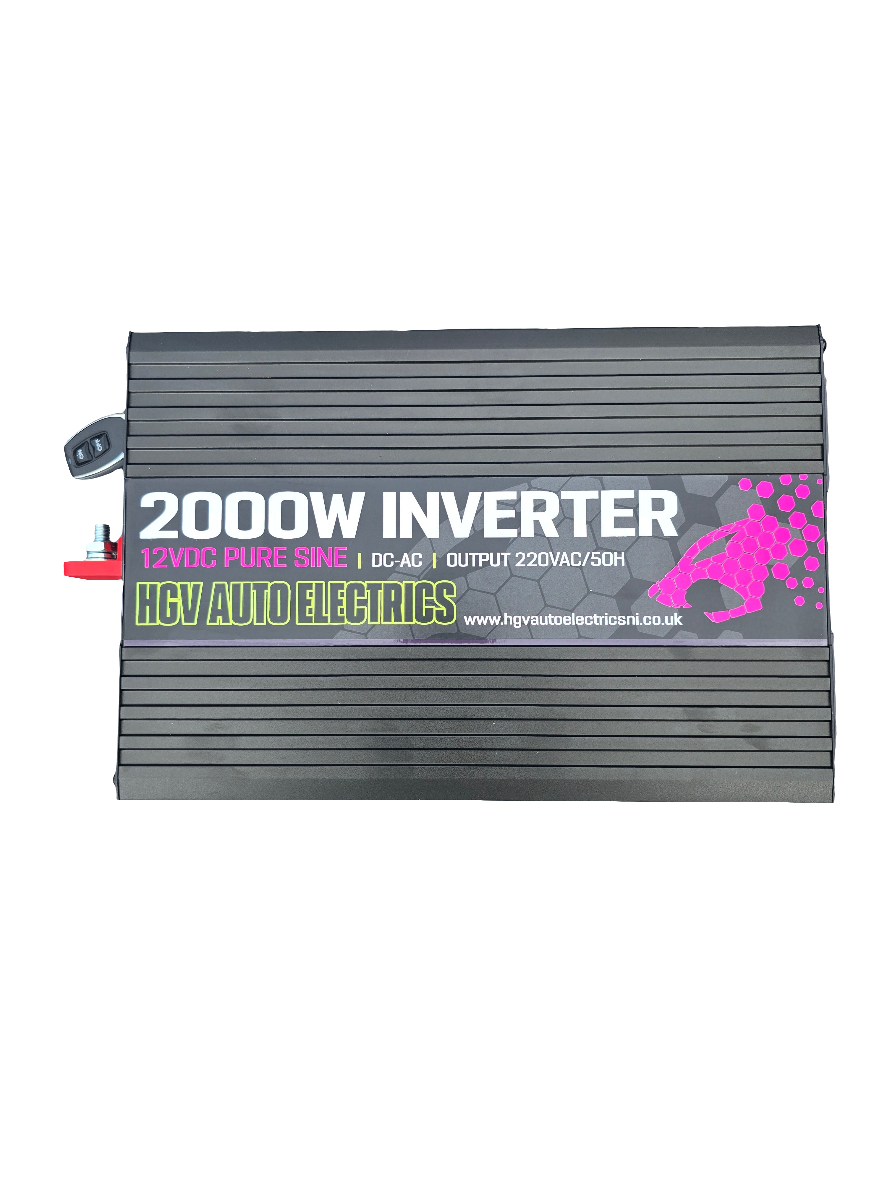

2000 Watt

• Rated Power 2000w
• Peak Power 4000w
• Input Voltage DC12v
• Output Voltage 220VAC/50hz
• Unload current less than 0.9a
• Output frequency 50Hz +0.5
• Output waveform Pure Sine
• Waveform Distortion THD3% Liner Load
• Max Efficiency 90%
• Input voltage range 10v - 15.5v
• Low voltage alarm 10.5
• Low voltage protection 10v
• Over voltage protection 15.5v
• Low voltage recover 12.3v
• Over voltage recover 14.8v
• Working temp -10 +50
• Dimensions 355x205x95
• Weight 3.9kg
• Warranty 2 Years
• Air Cooled

Protection functions and alarms

1. Over voltage. Red light on and shut down
2. Low voltage. Alarm sound, voltage reduce, red light on, shut down
3. Over load. Red light on and shut down
4. Over temp. Alarm sound, temp continues to rise, red light on, shut down
5. Short circuit. Red light on
6. Input reverse polarity. Fuse burn out.

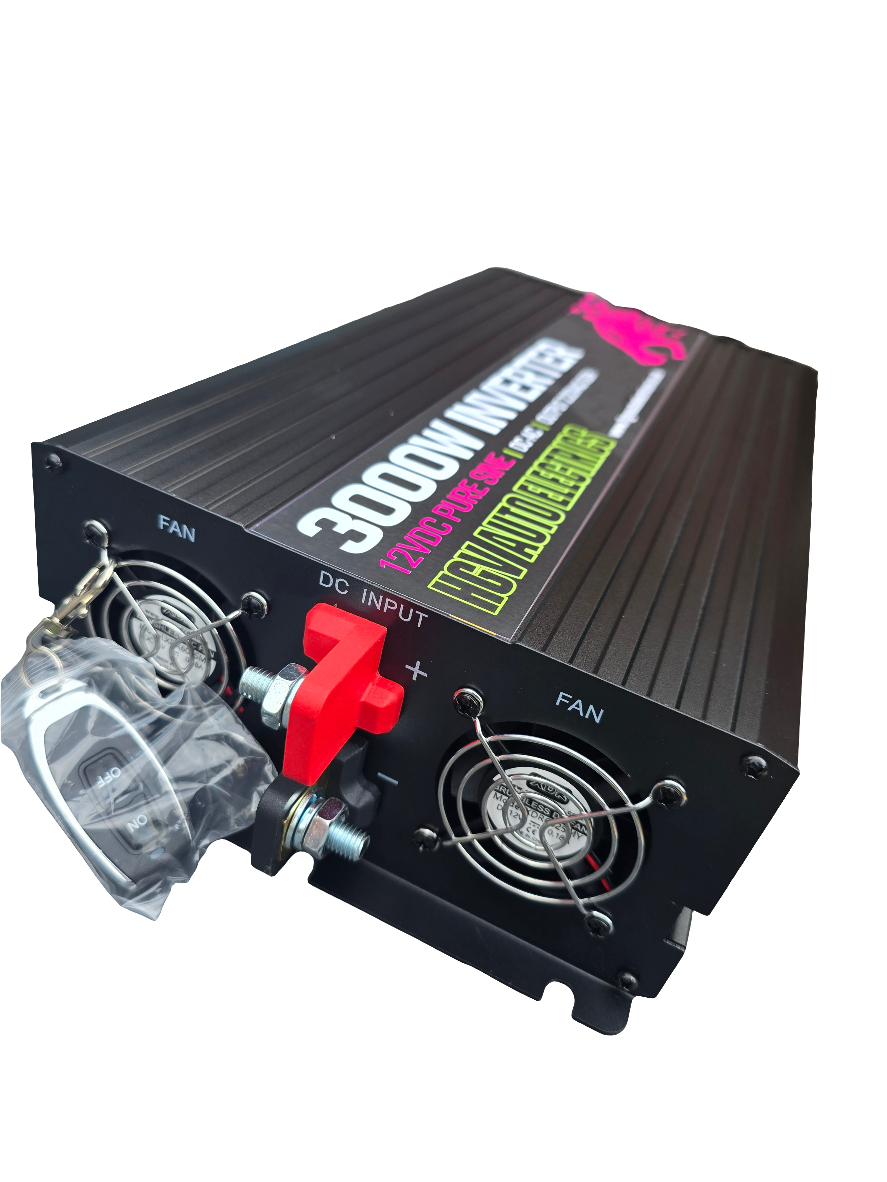

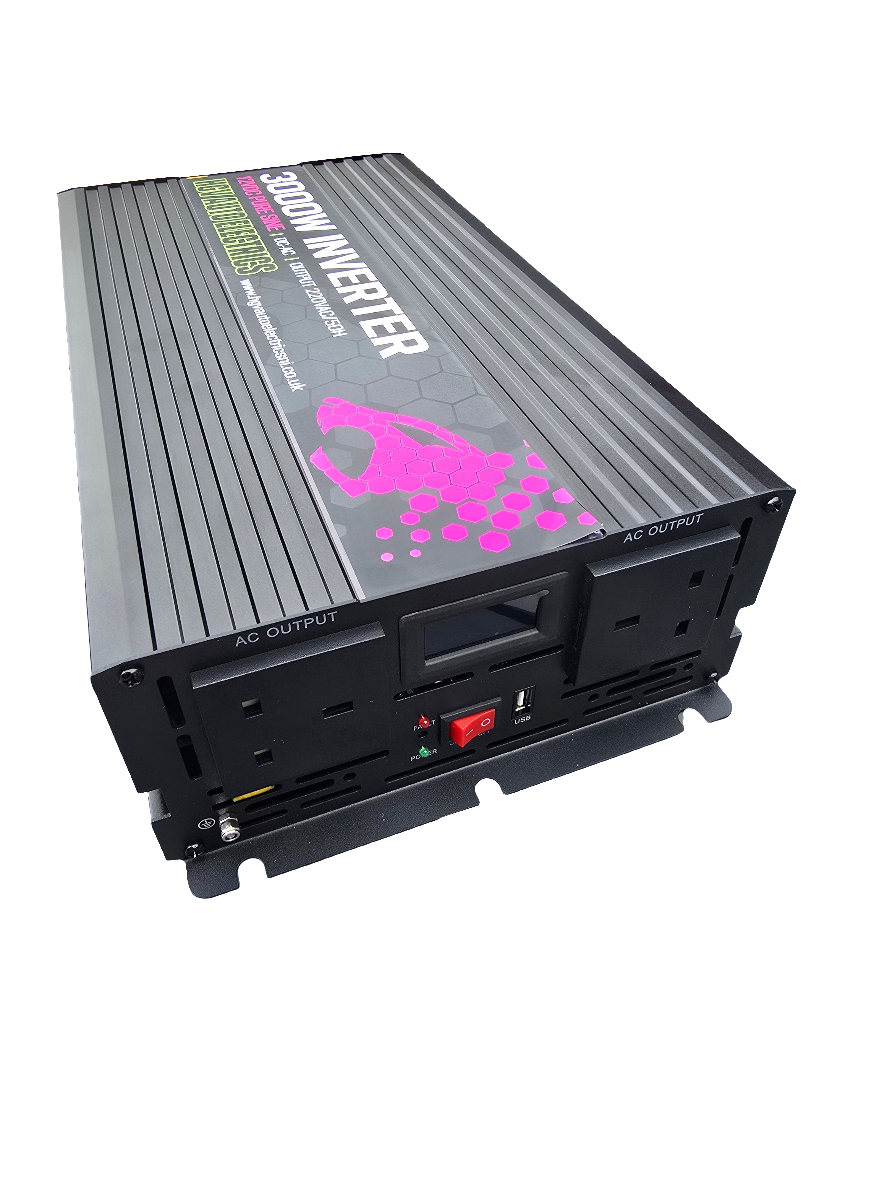

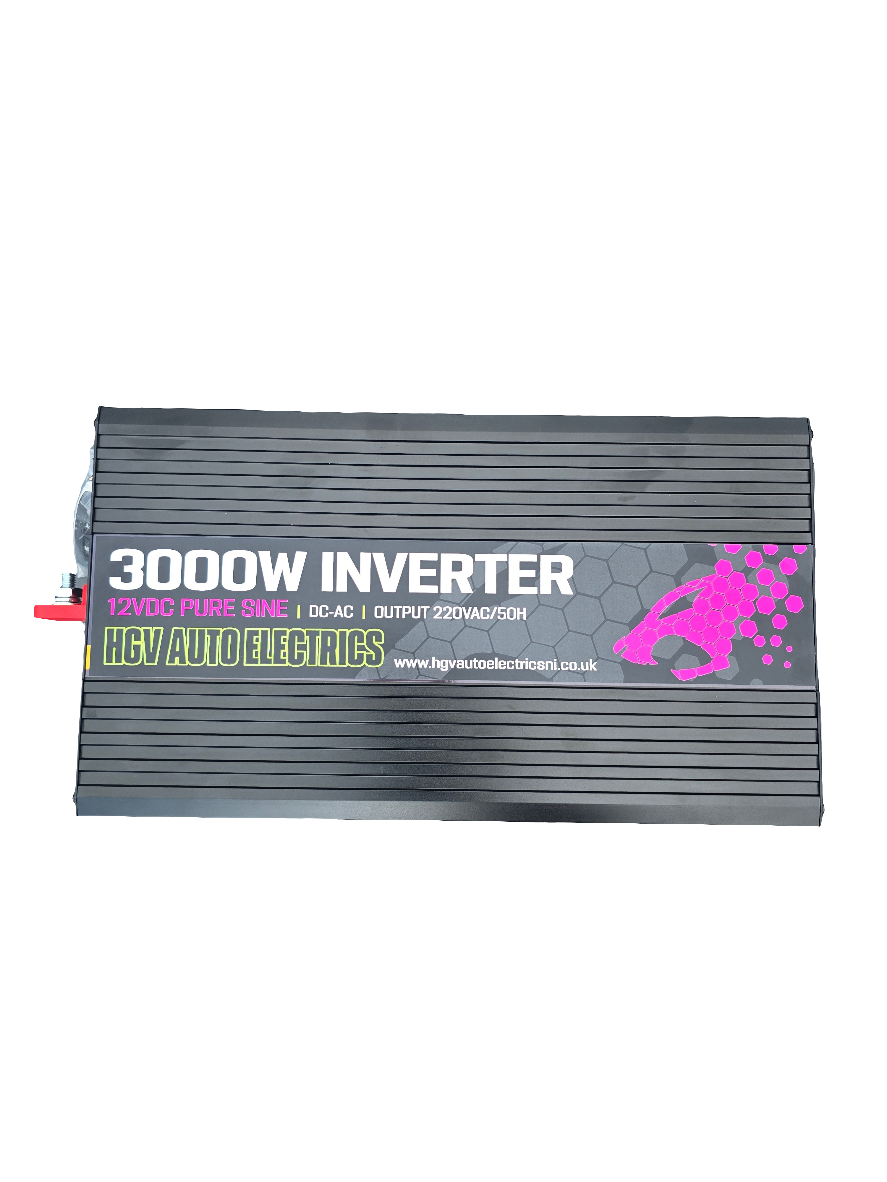

3000 Watt

• Rated Power 3000w
• Peak Power 6000w
• Input Voltage DC12v
• Output Voltage 220VAC/50hz
• Unload current less than 1a
• Output frequency 50Hz +0.5
• Output waveform Pure Sine
• Waveform Distortion THD3% Liner Load
• Max Efficiency 90%
• Input voltage range 10v - 15.5v
• Low voltage alarm 10.5
• Low voltage protection 10v
• Over voltage protection 15.5v
• Low voltage recover 12.3v
• Over voltage recover 14.8v
• Working temp -10 +50
• Dimensions 415x205x95
• Weight 5kg
• Warranty 2 Years
• Air Cooled

Protection functions and alarms

1. Over voltage. Red light on and shut down
2. Low voltage. Alarm sound, voltage reduce, red light on, shut down
3. Over load. Red light on and shut down
4. Over temp. Alarm sound, temp continues to rise, red light on, shut down
5. Short circuit. Red light on
6. Input reverse polarity. Fuse burn out.
